Description

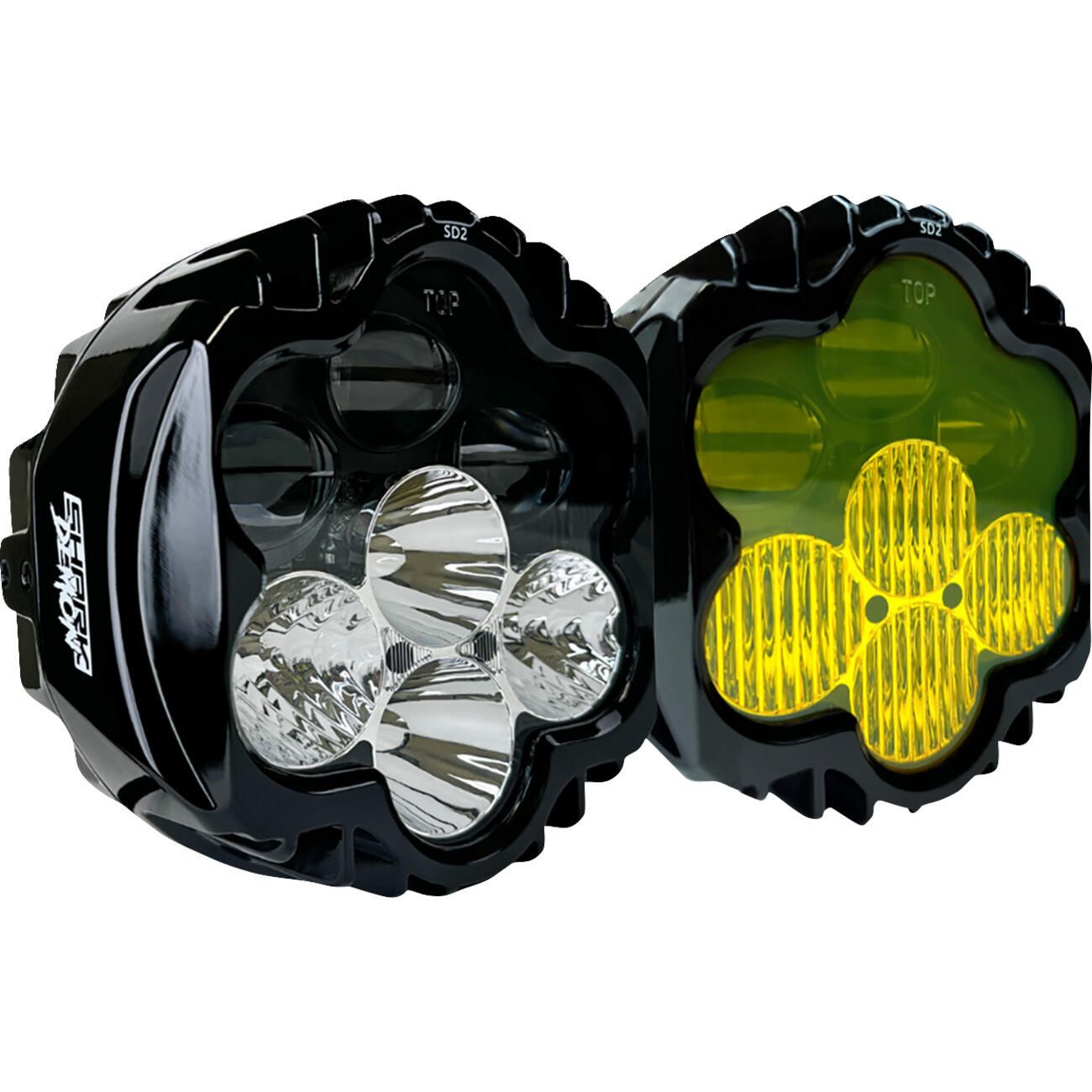

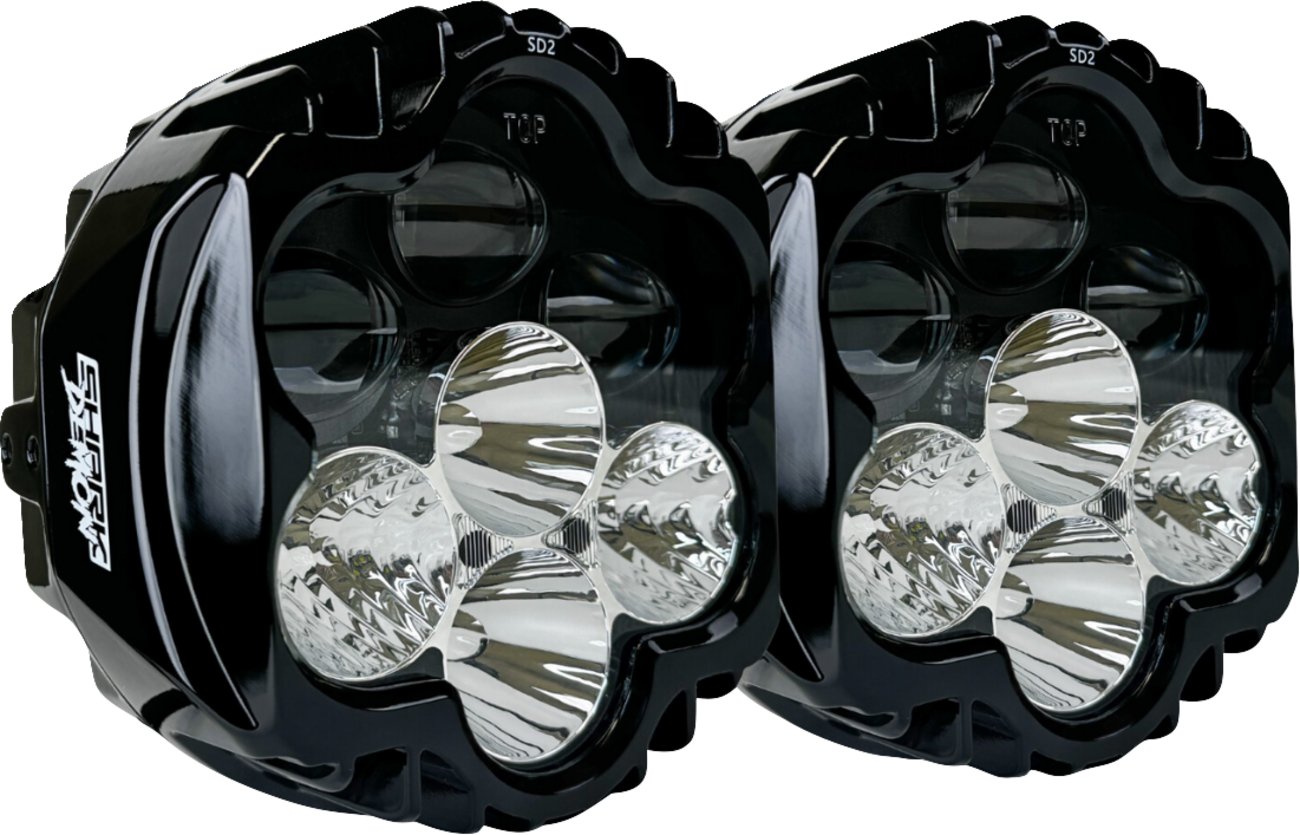

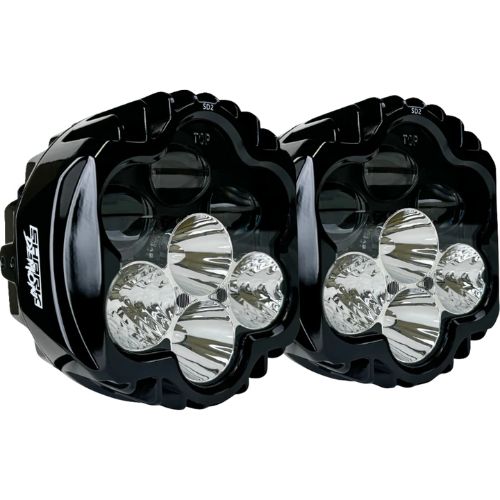

The newest version of our popular Shark Demon™ LED headlight kit for Road Glide has been redesigned to offer the BEST overall performance motorcycle headlight with increased effective lumen output, simplified assembly, and improved compatibility with complementary Custom Dynamics® products. DOT compliant design with high-performance illumination specialized for motorcycle on-road use. Improved combined low beam projects 7200 raw/5302 effective lumens from six projection-style LEDs. High beam adds eight additional direct-reflective LEDs boasting an impressive 18160 raw/8970 effective lumens total. Overall, each lamp increased by 90% brightness on low beam & 40% increase on high beam over the original design. Lamp assemblies are completely sealed IP67, waterproof with clear polycarbonate lens with a gloss black aluminum housing. Three millimeter, 304 gloss black stainless steel mounting brackets have also been completely re-engineered to minimize assembly and installation time. Plug and play wire harness, and mounting hardware are also included.
Features
- DOT compliant design specialized for motorcycle on-road use
- High-performance illumination
- High beam : 18 160 raw lm, 8 970 effective lm (dual lamp)
- Low beam : 7 200 raw lm, 5 302 effective lm (dual lamp)
- 90% increase from the original low beam effective lm, per lamp
- 40% increase from the original high beam effective lm, per lamp
- Gloss black aluminum housings
- Durable polycarbonate clear lens
- 5800–6500k daylight color temperature

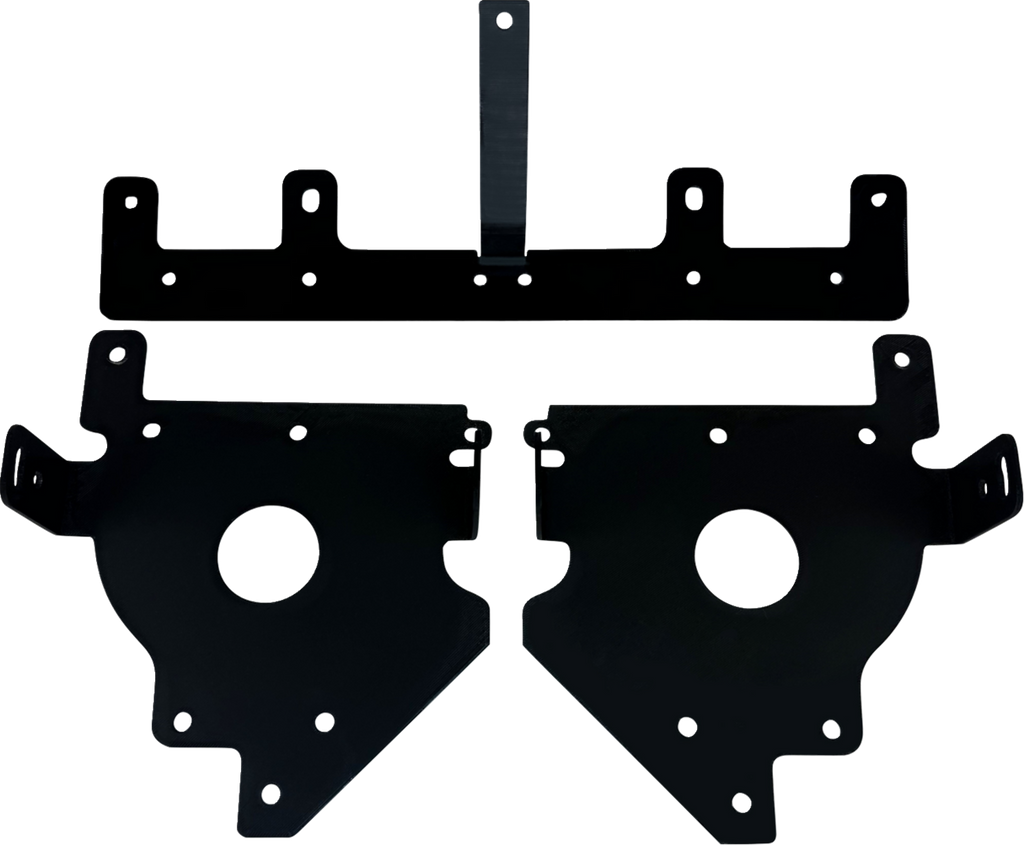

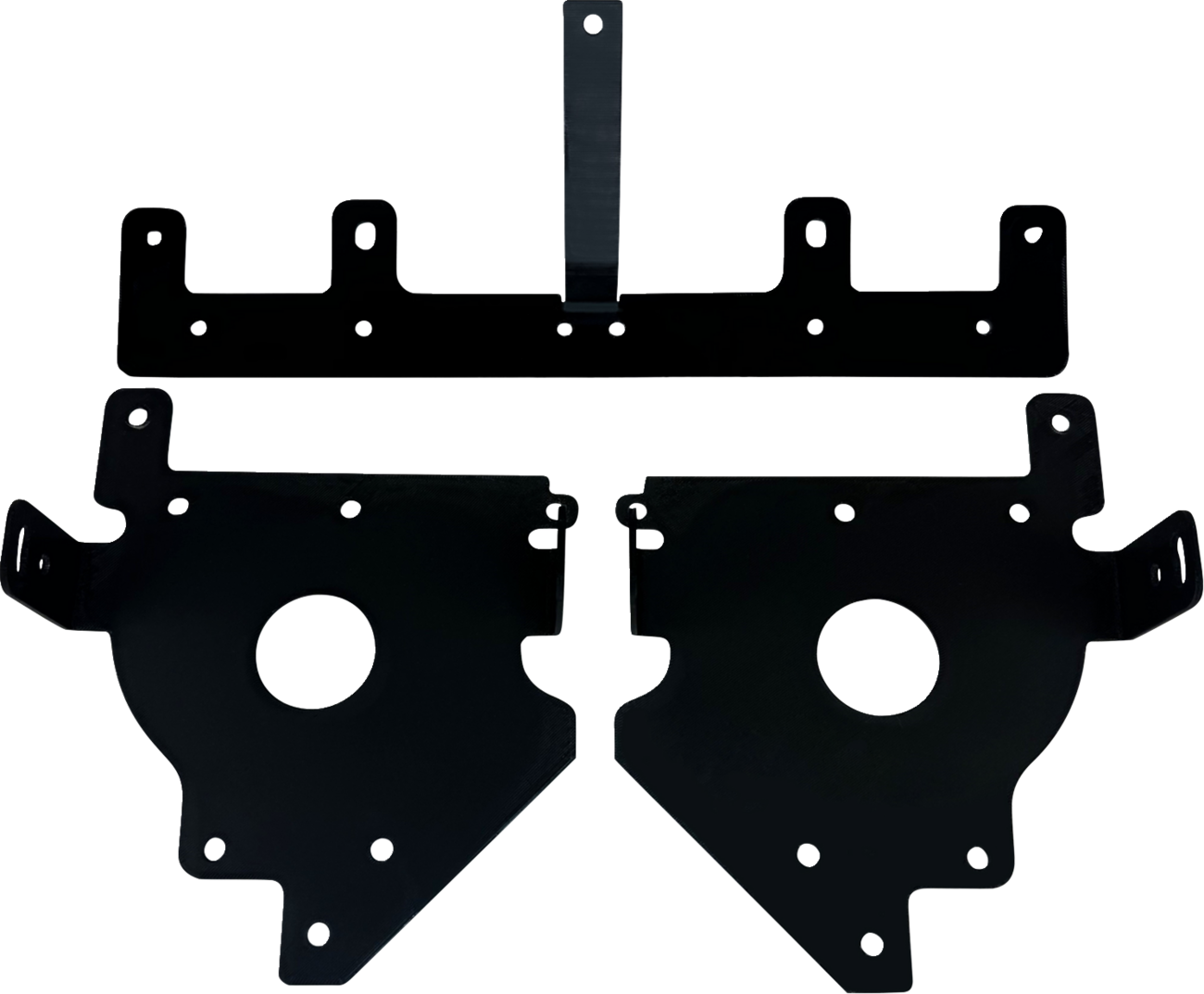

- Simplified bracket design for quicker install
- 3mm, 304 stainless steel brackets
- Plug and play wire harness
- Mounting hardware included
- Waterproof: IP67 ingress protection rating
- minimized current draw (30% less on low beam, 24% less on high beam compared to original design)
- Lifetime warranty
- Engineered in the USA
- US Patent D1102637
- China patent 202430259656.X
- Additional US patents pending
Fitment

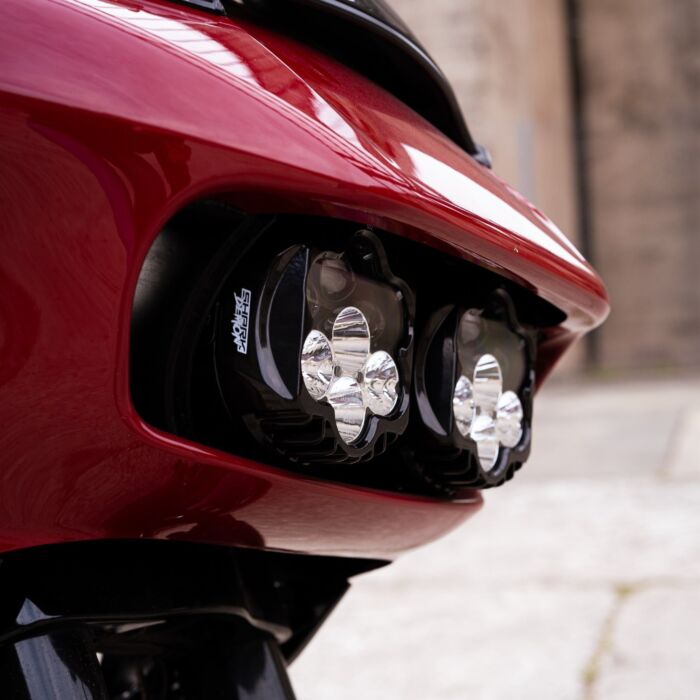

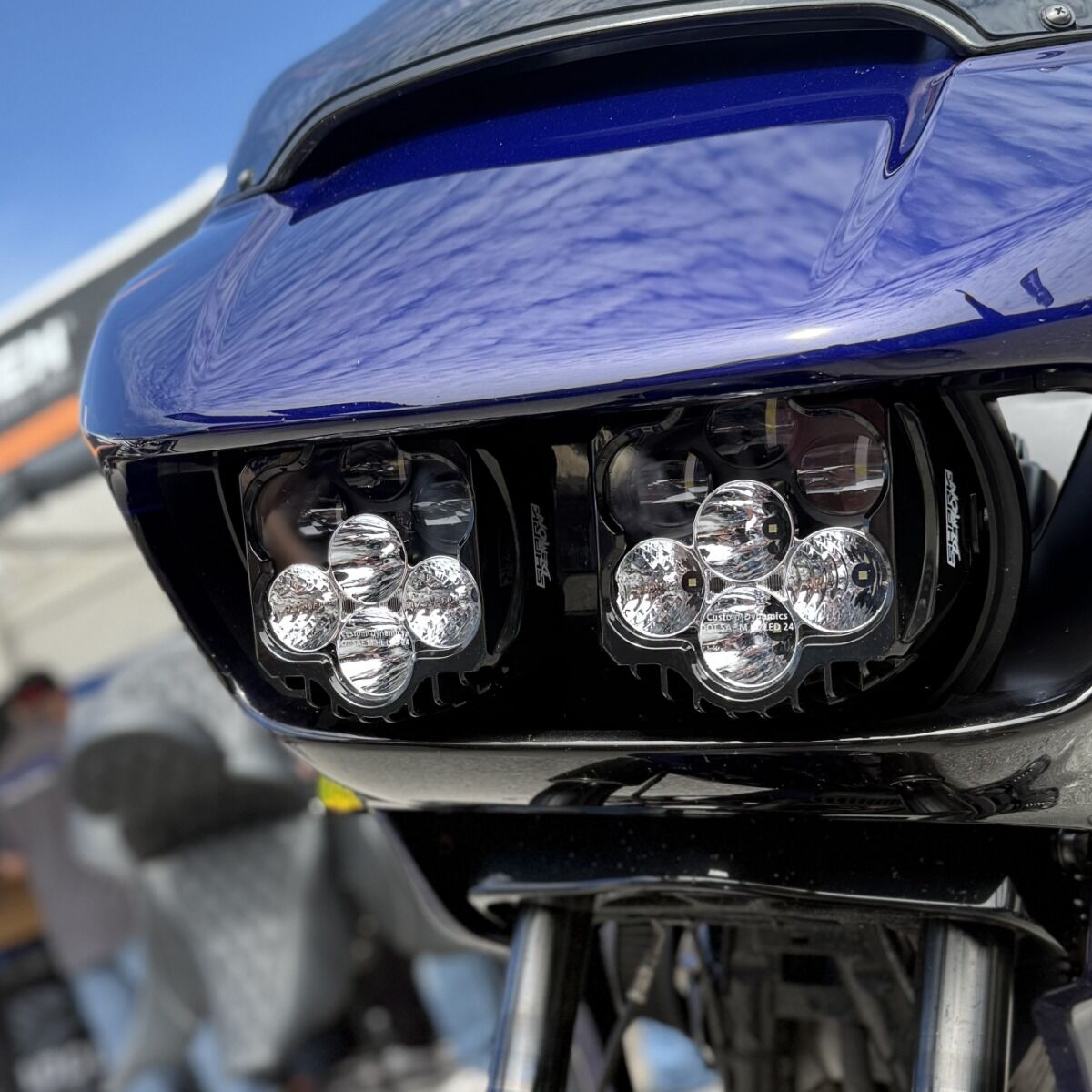

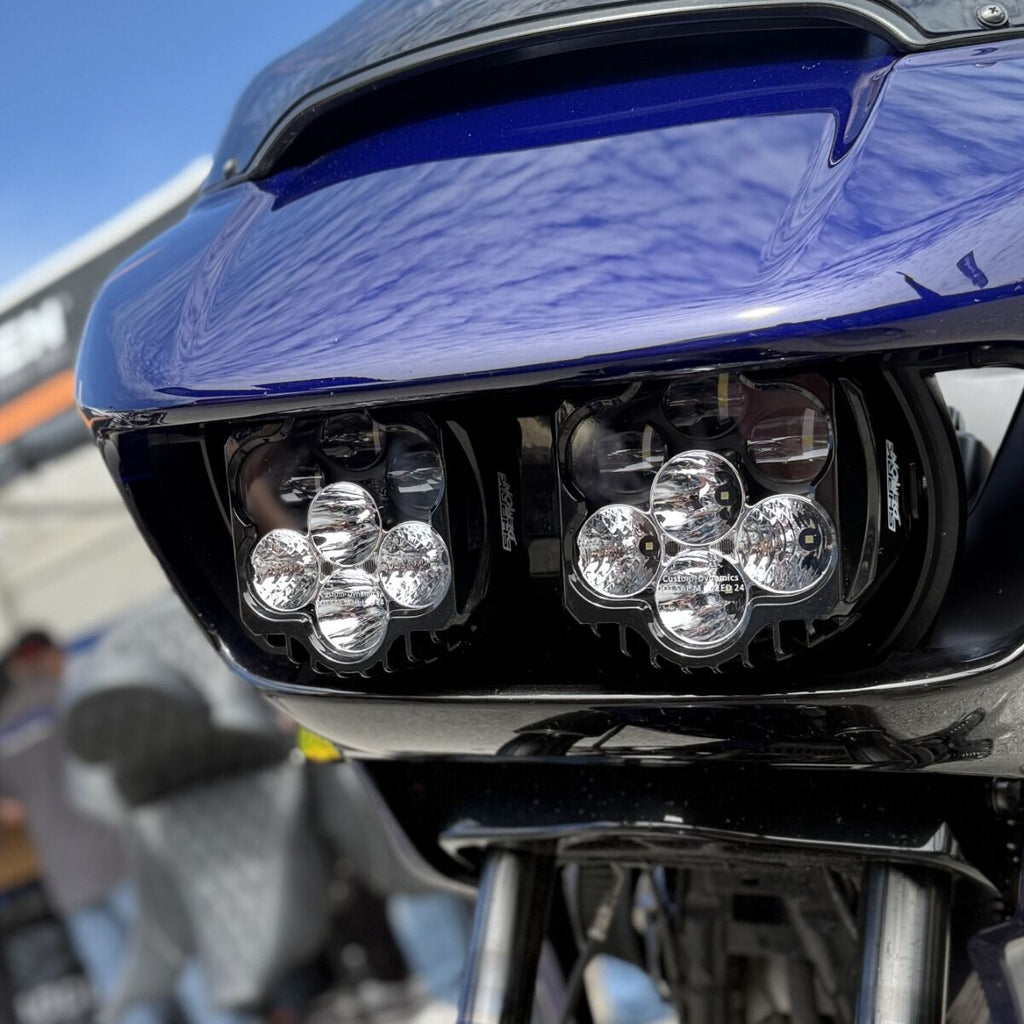

- Fits 2015-2023 Harley-Davidson® Road Glide (FLTRX), Road Glide Special (FLTRXS), 2022-2023 Road Glide ST (FLTRXST) & CVO™ Road Glide Limited (FLTRKSE), 2020-2024 Road Glide Limited (FLTRK), 2018-2022 CVO™ Road Glide (FLTRXSE), 2016-2019 Road Glide Ultra (FLTRU), 2020-2022 CVO™ Road Glide Ultra (FLTRUSE) and 2023-2025 Road Glide 3 (FLTRT)
- Aftermarket amps require a Fairing Spacer Kit (sold separately); if installing with optional fairing vent lights, modifications are required
