Description

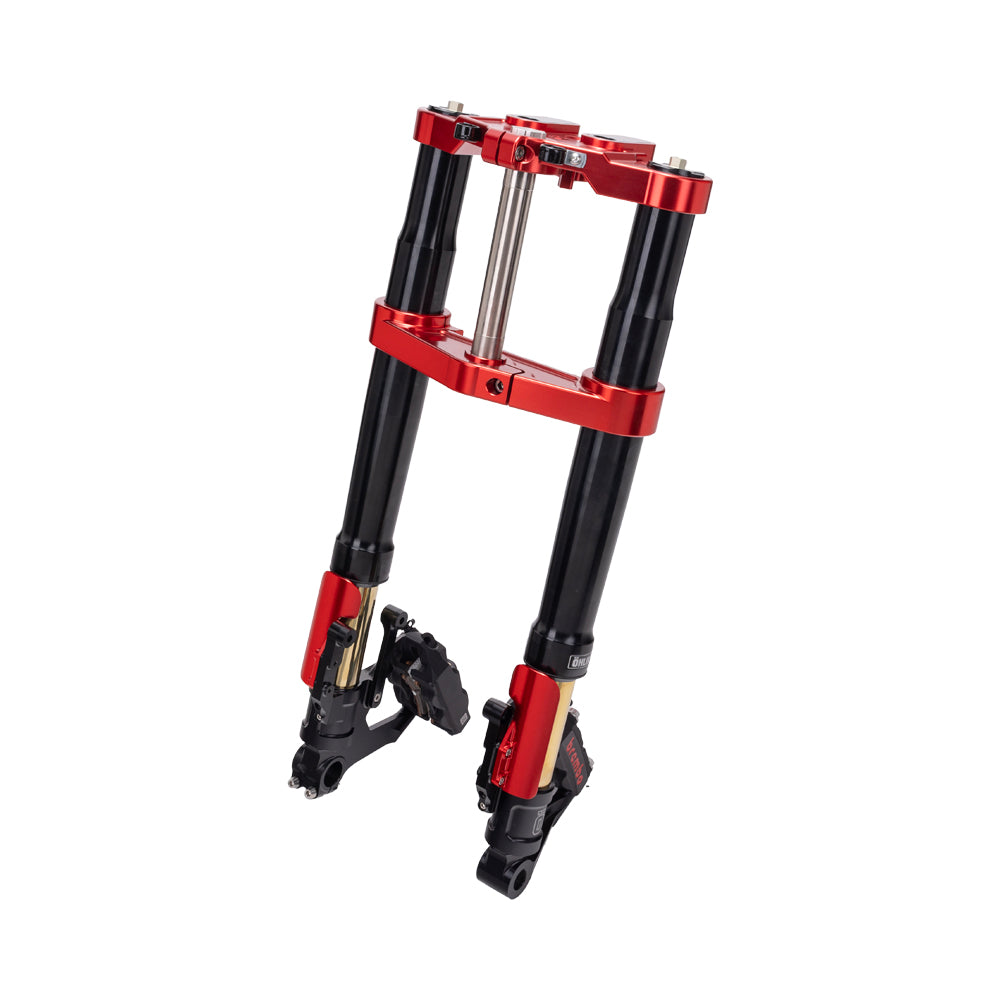

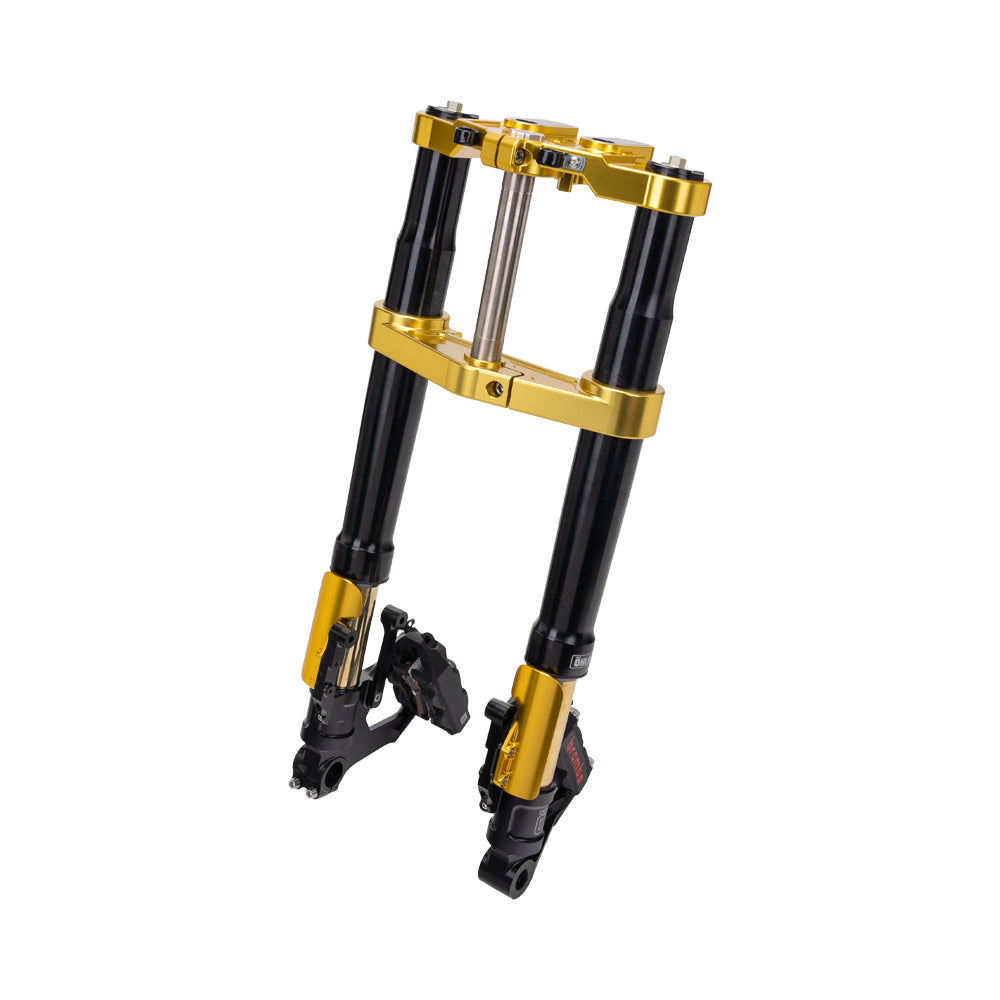

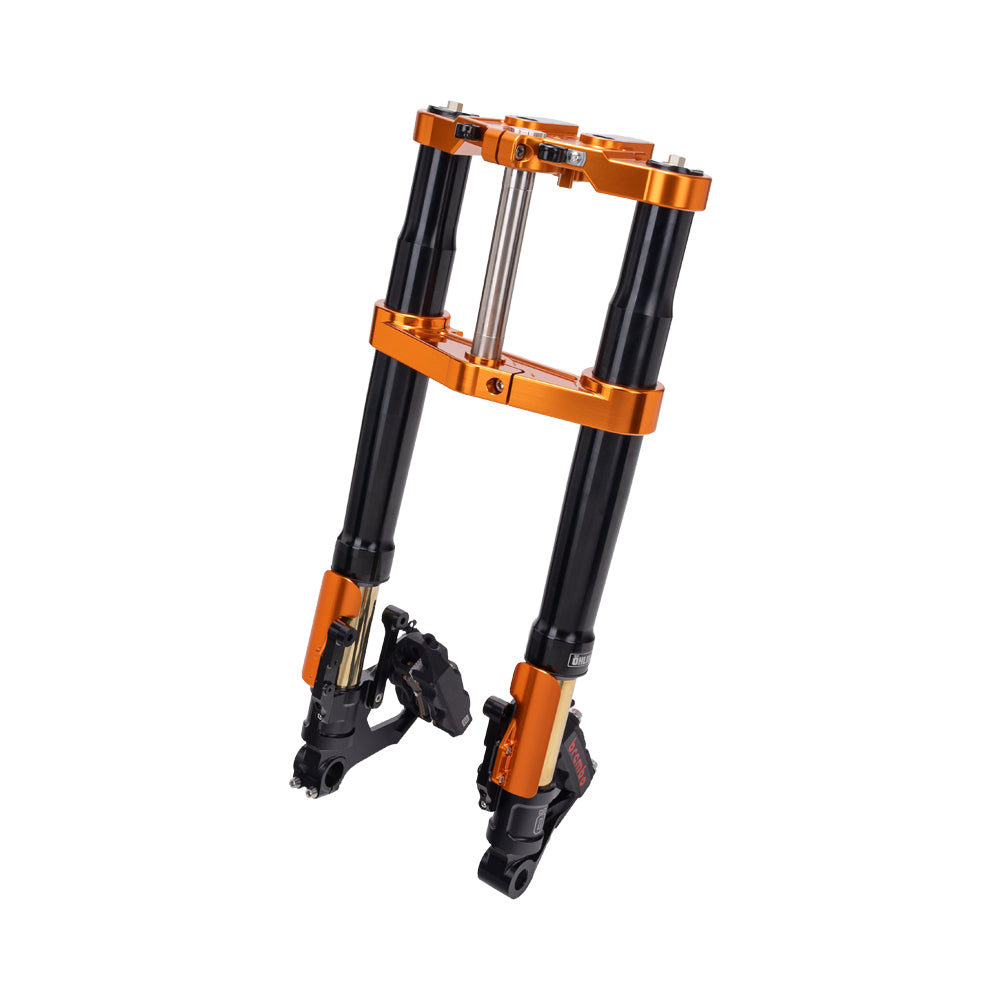

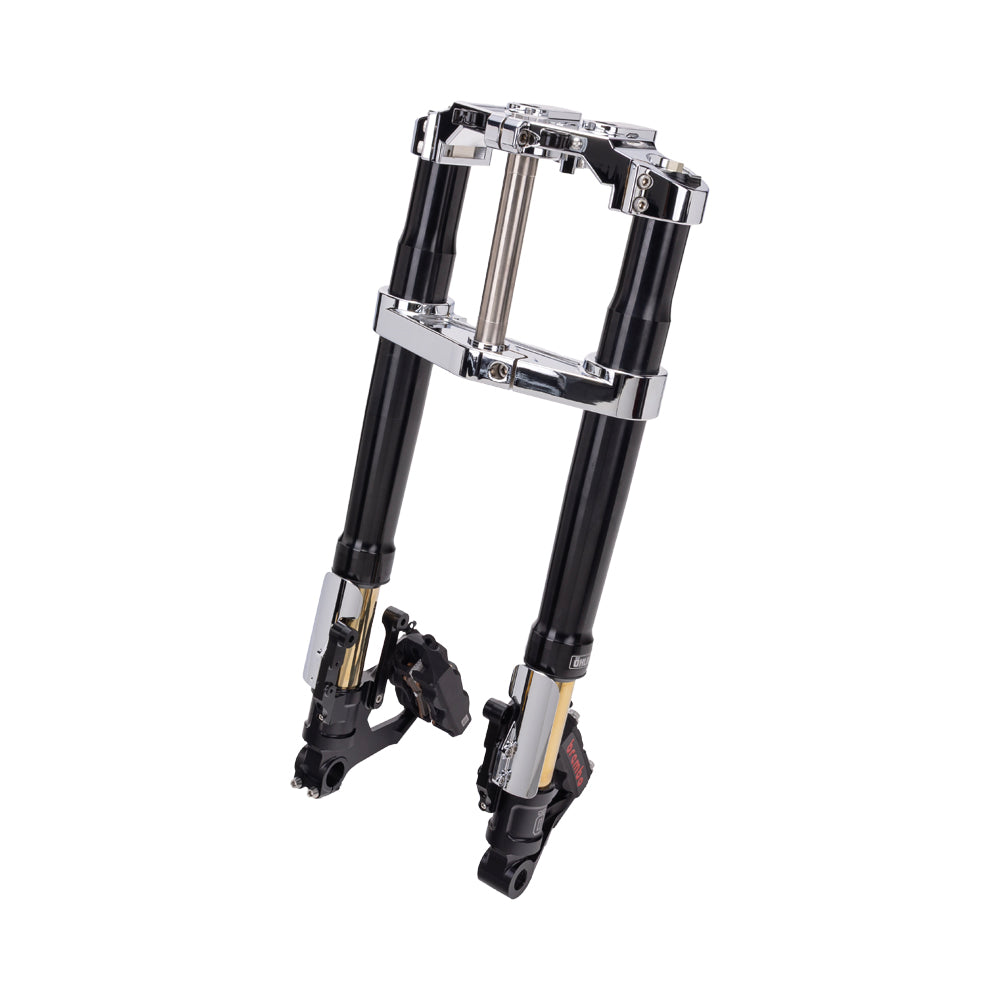

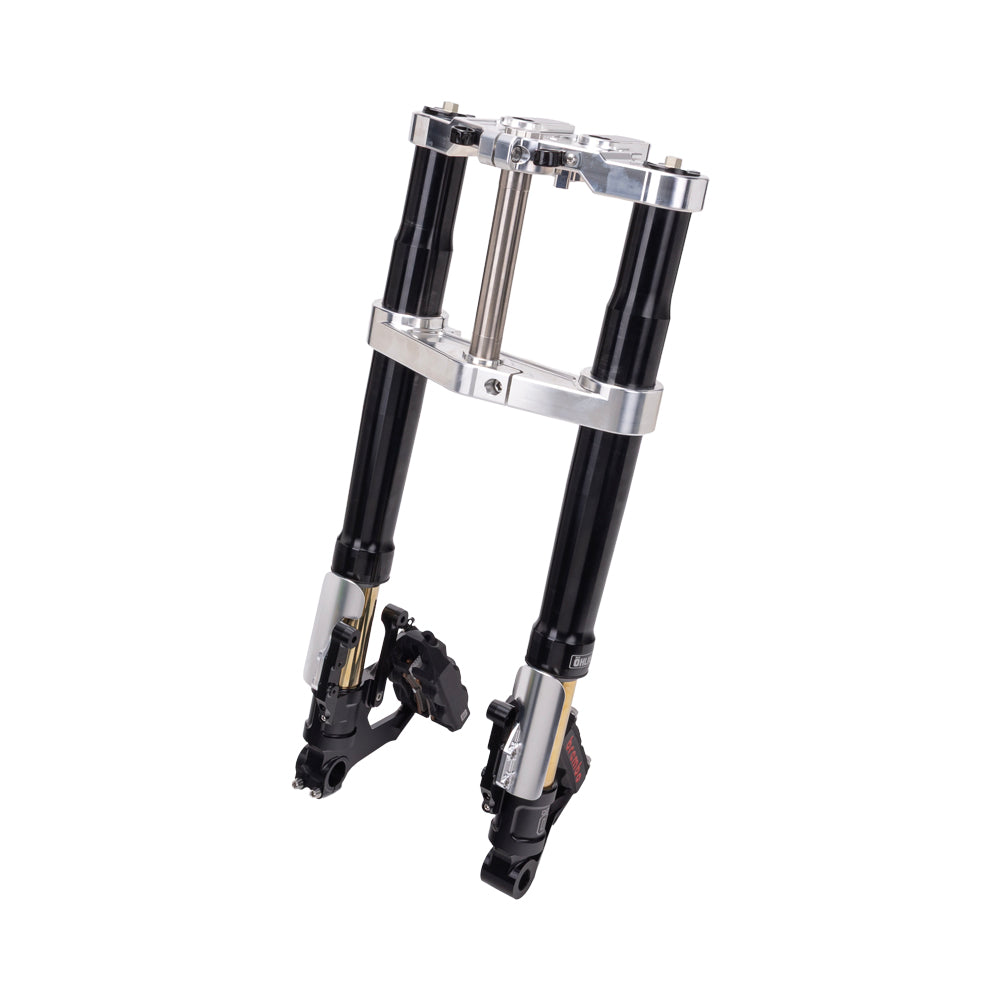

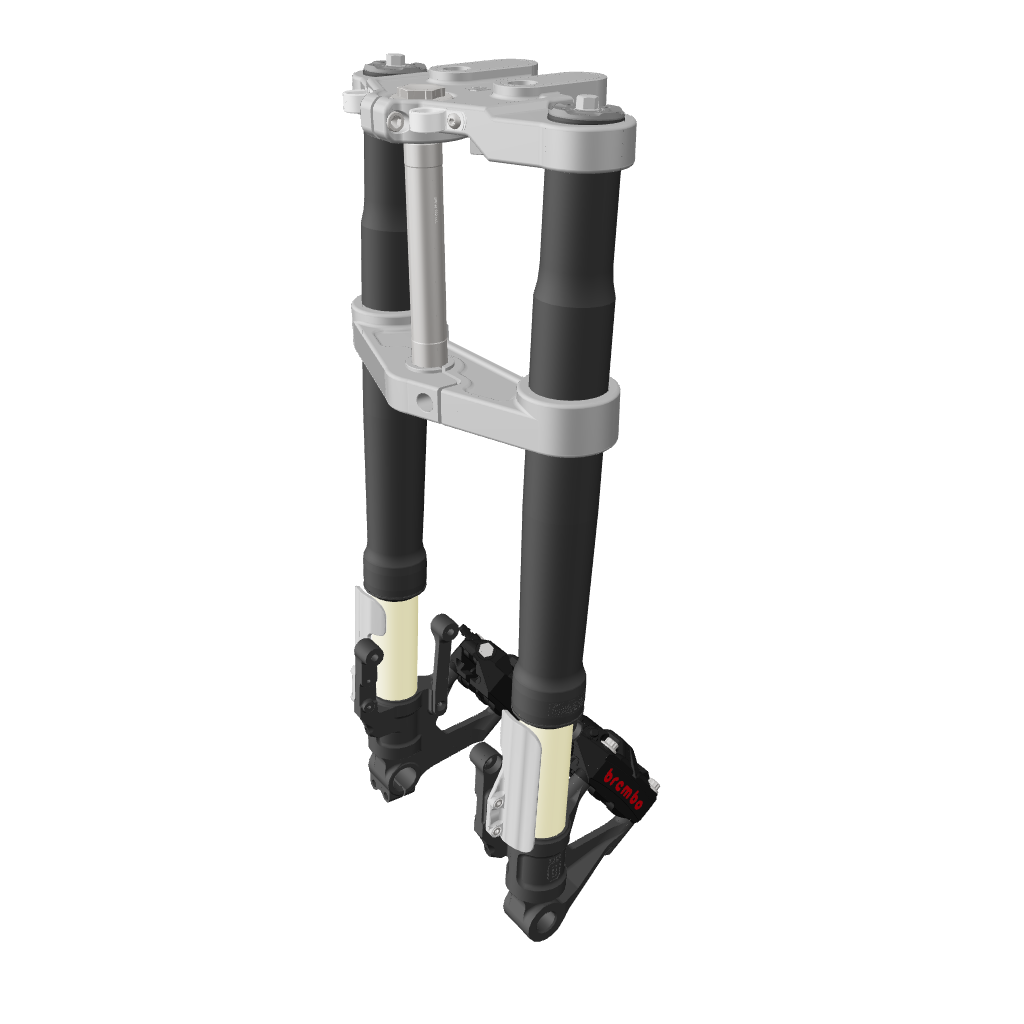

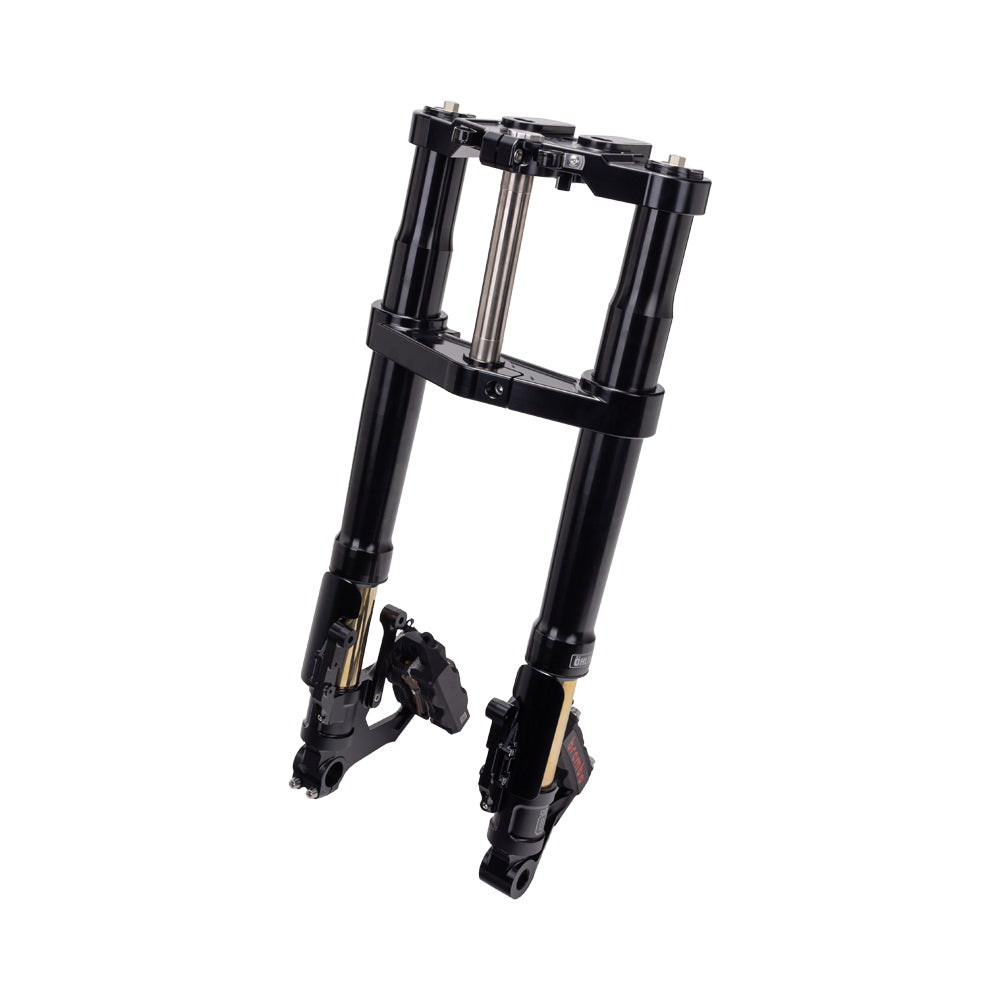

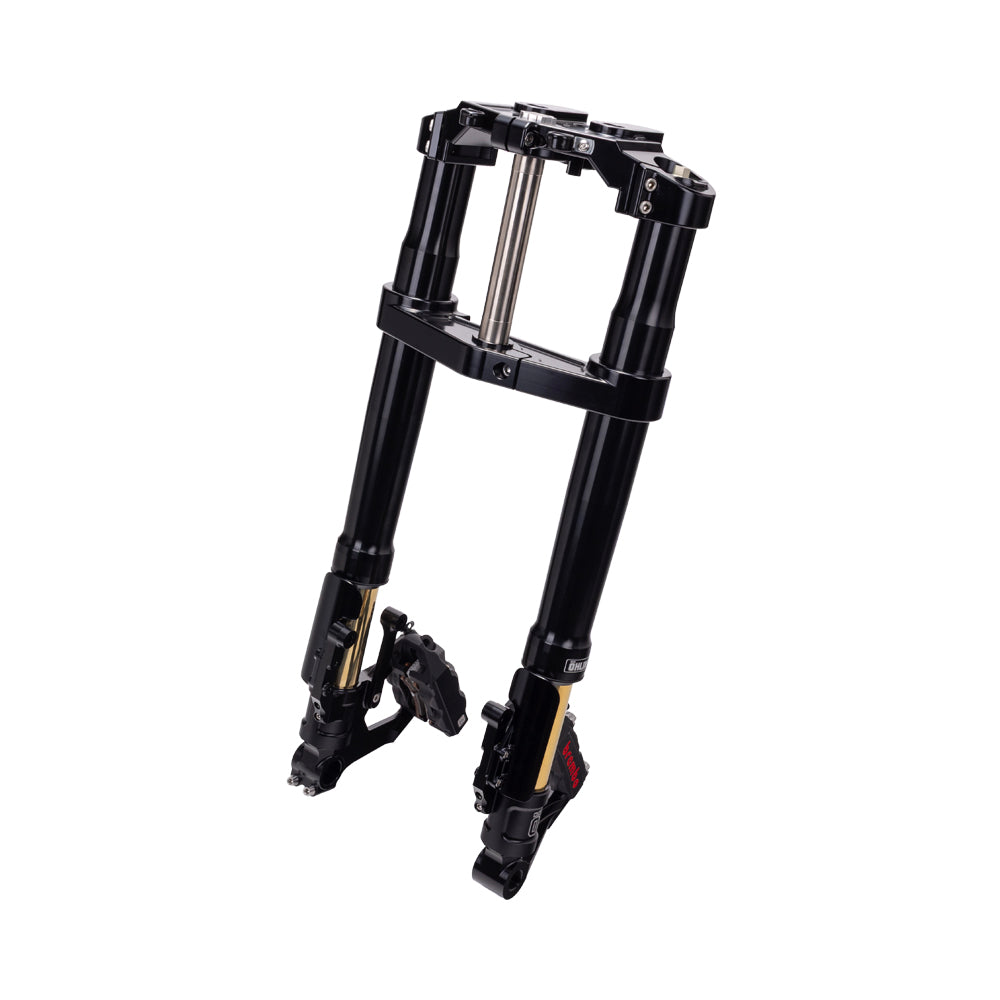

Unleash the full potential of your performance bagger with the OG 2024-Up Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.

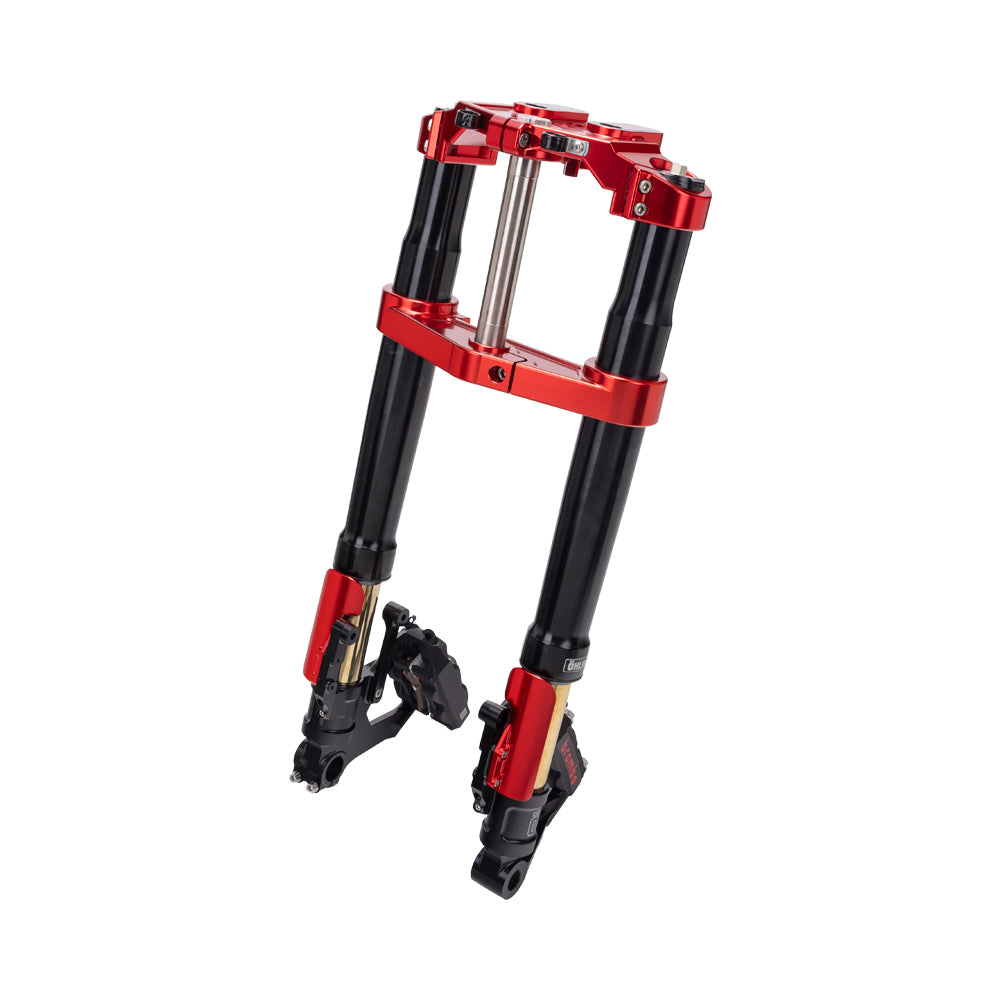

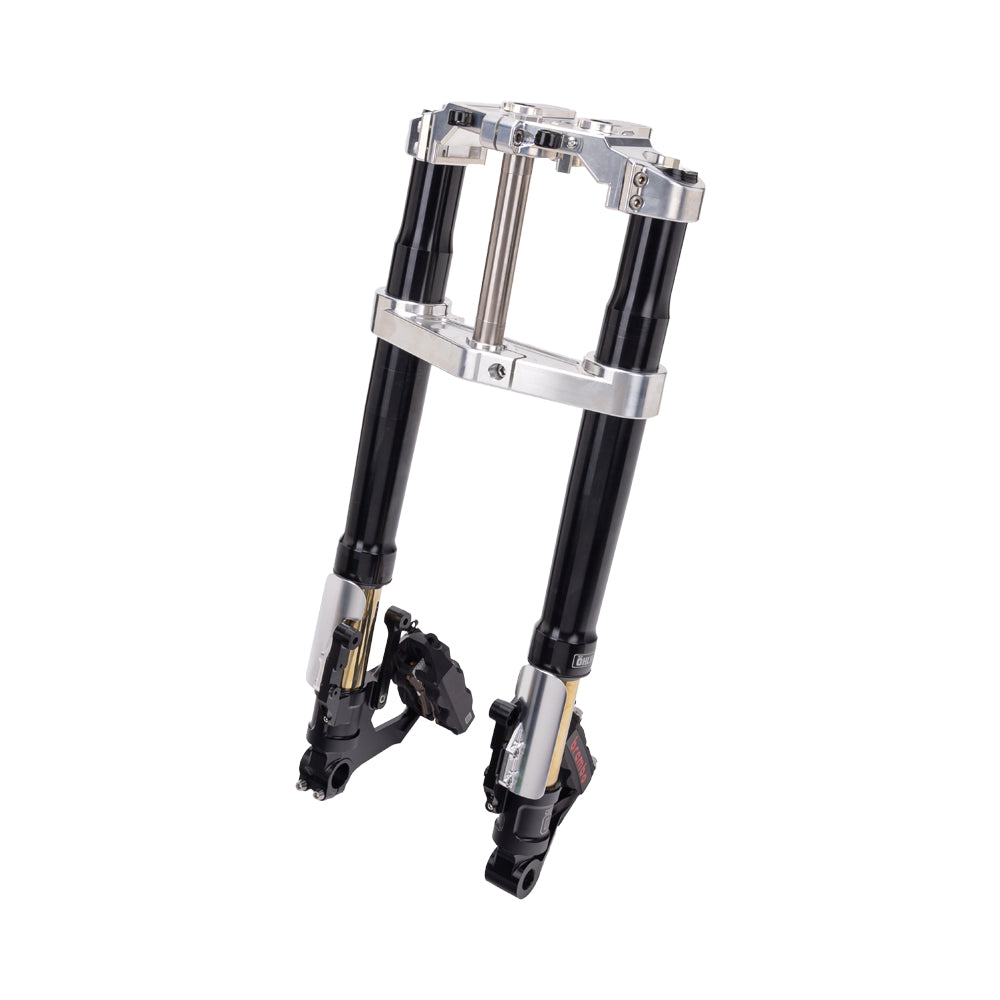

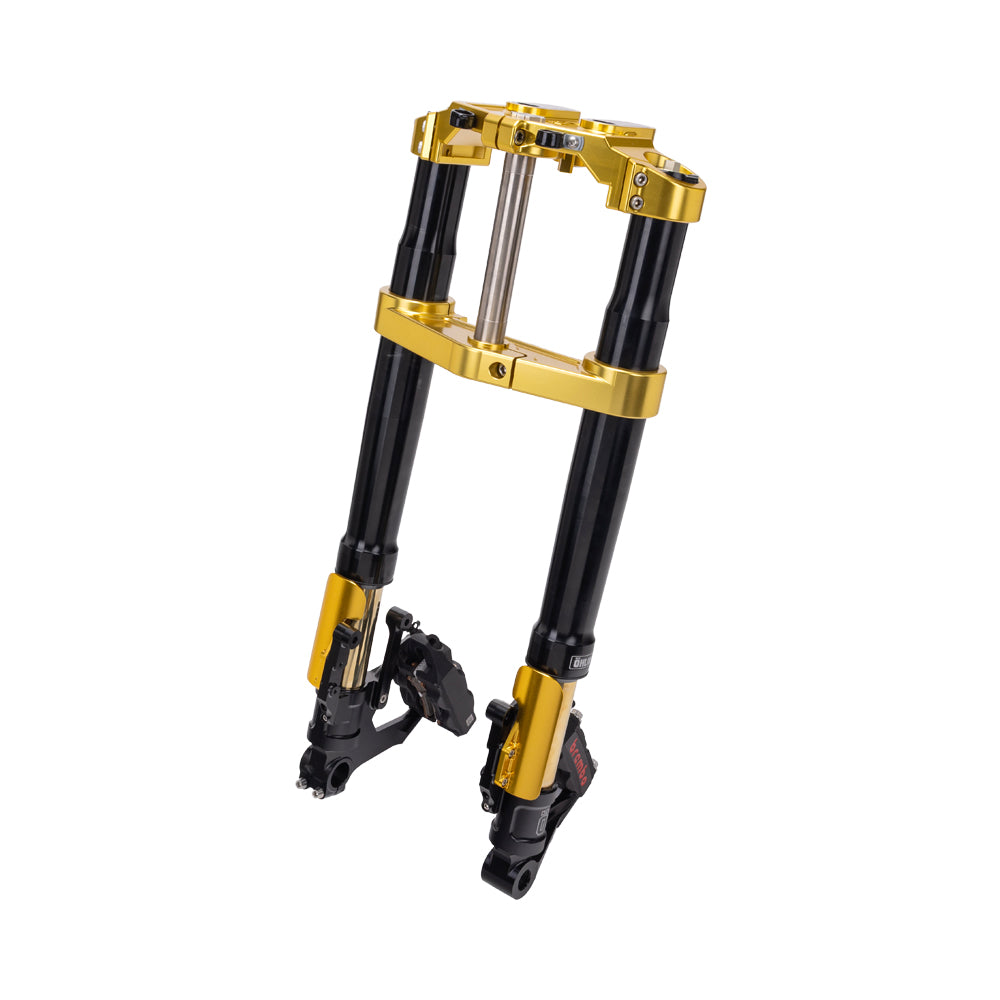

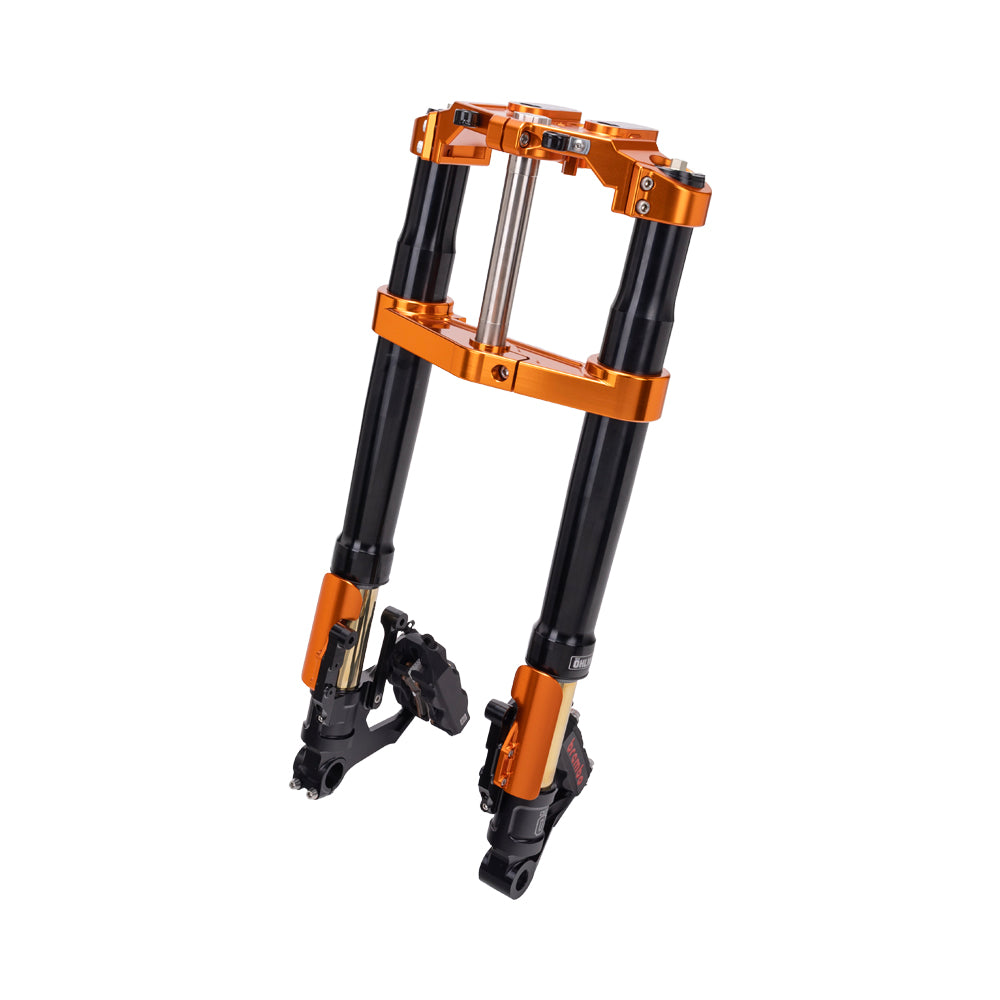

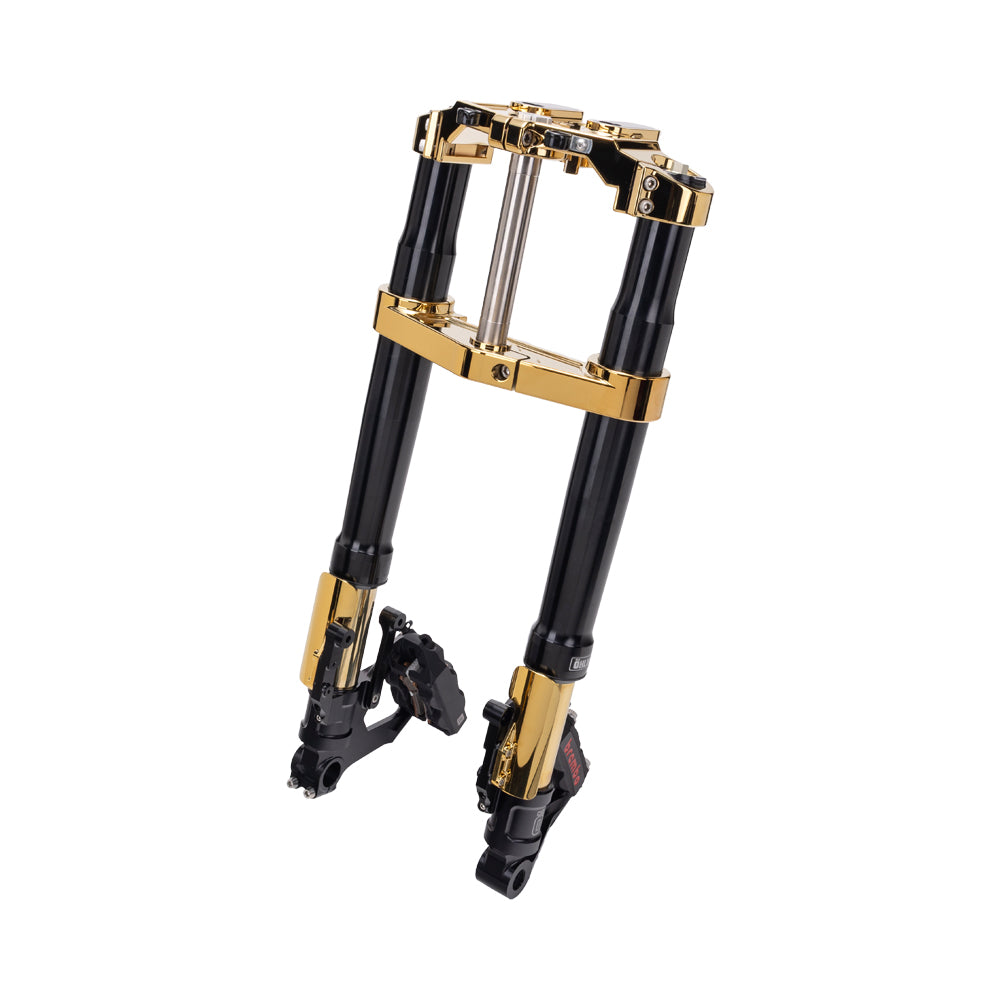

Our complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with our Touring CVO Fork Guards and your choice of Brembo 100mm Calipers, renowned for their precision and consistent performance. We also offer this kit without calipers.
Features
- Precision CNC-machined 6061 T6 aluminum Trees & Components
- Trees & Components available in all Anodized & Chrome finishes
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
- Require brake line replacement. We recommend using our +2" OG 2024-Up Touring Lower Brakes Lines (SKU: H-BH-05-BP)
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nut machined from 4140 Chromoly Steel for superior strength.
- Trees include wires & brake line(s) management clamps
- Trees are supplied with a lock and key to keep the fork lock feature
- Includes our innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters are sold separately
- Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Fitment

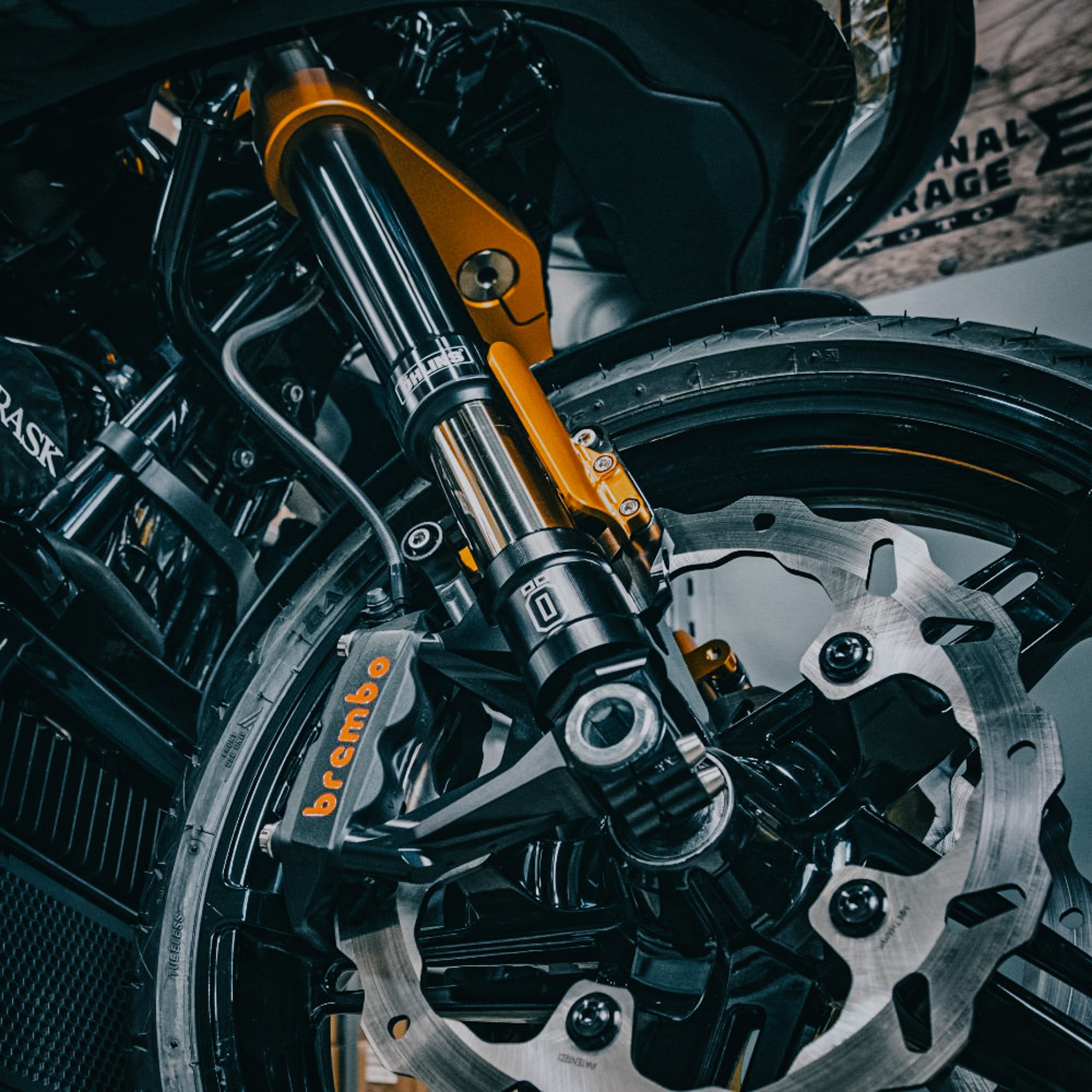

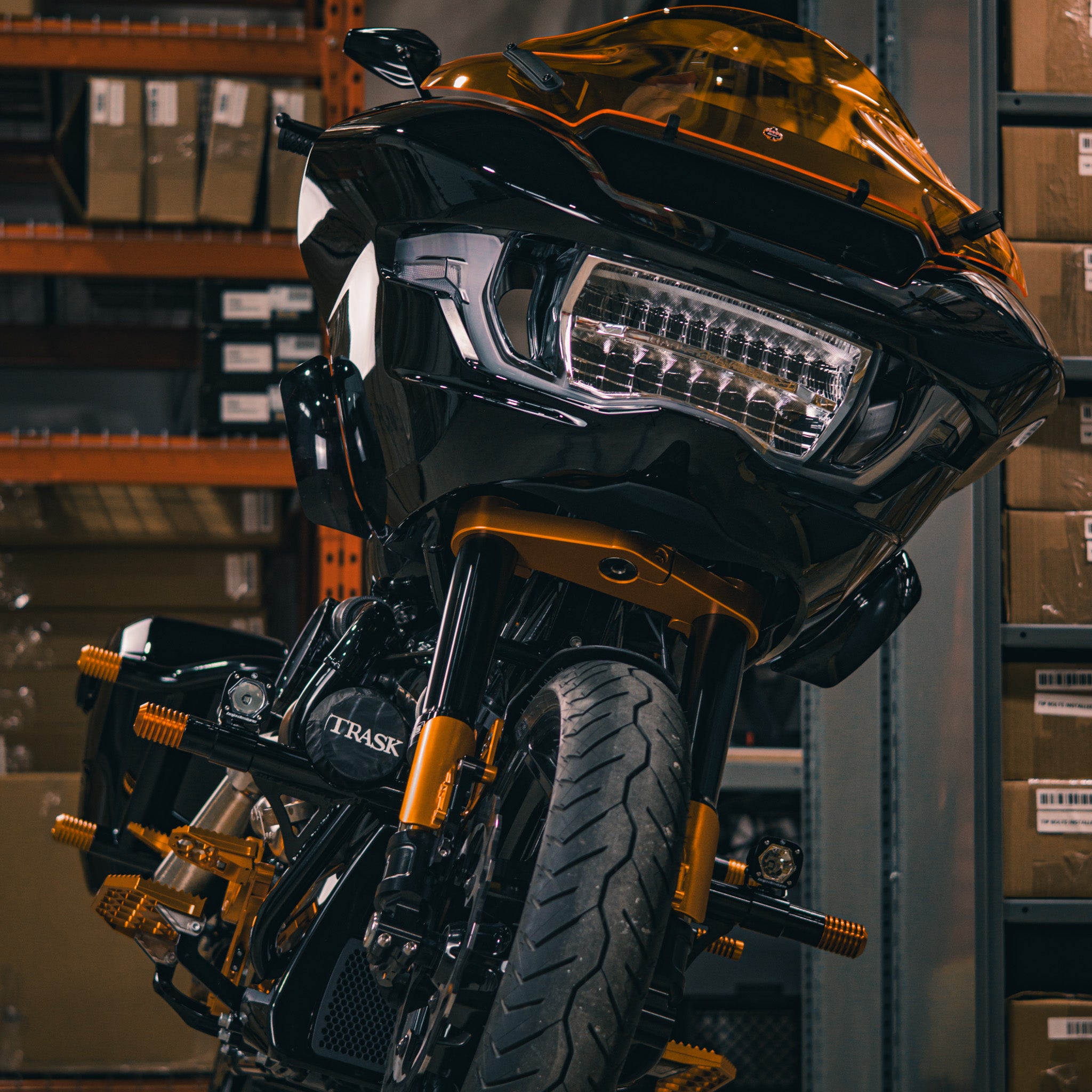

- Fits 2024 to present Road Glide models with 49mm front end
- Fits all 2023 to present CVO & CVO ST Road Glide models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
- Fits with the stock front fender or with our OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models
- Designed to use the stock 2024-present Touring axle and wheel spacers
- Require brake line replacement. We recommend using our +2" OG 2024-Up Touring Lower Brakes Lines (SKU: H-BH-05-BP)
