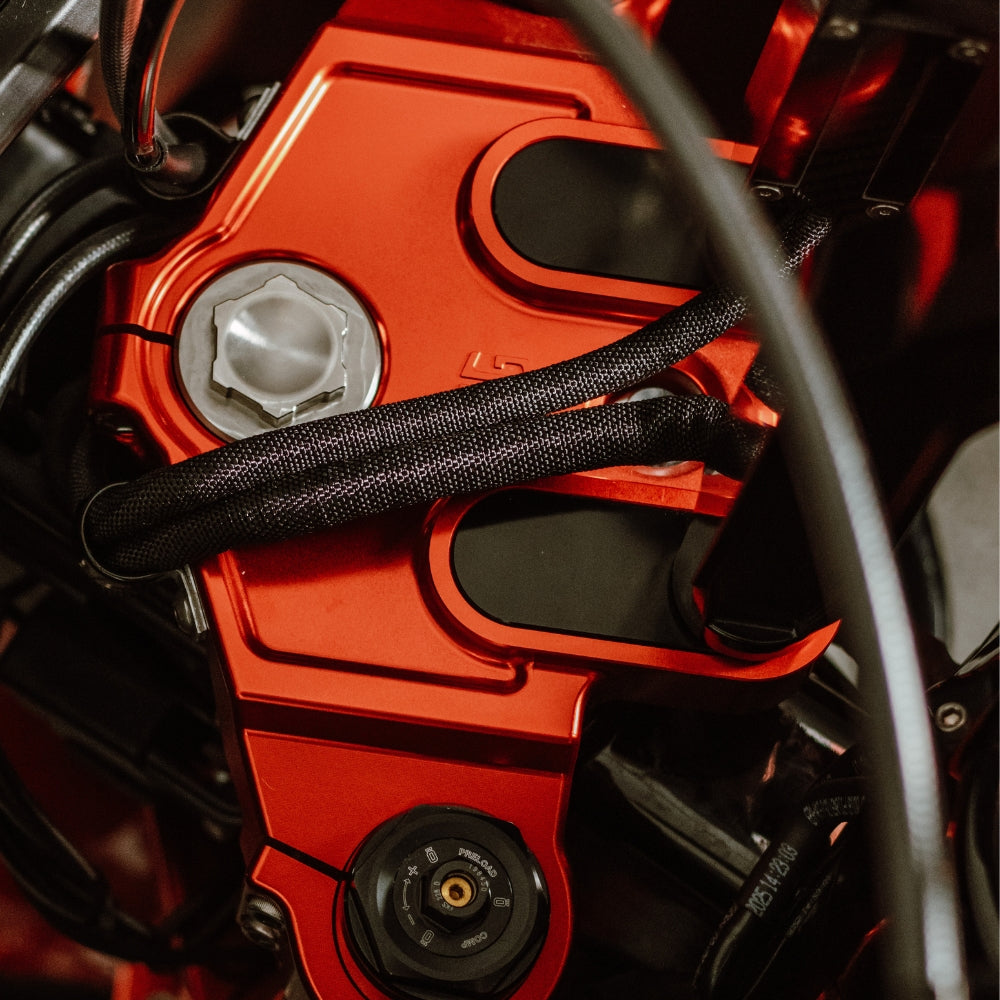

Description

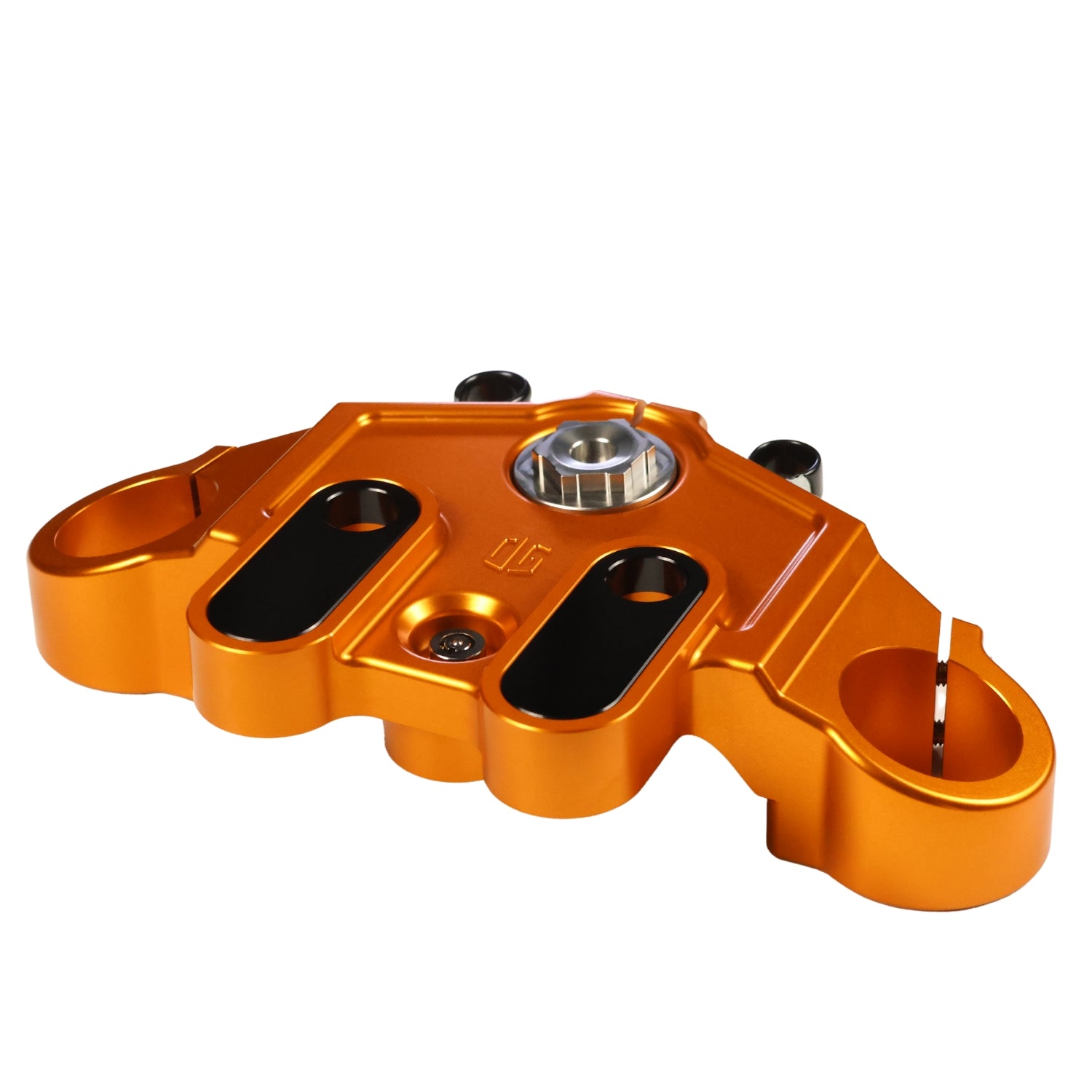

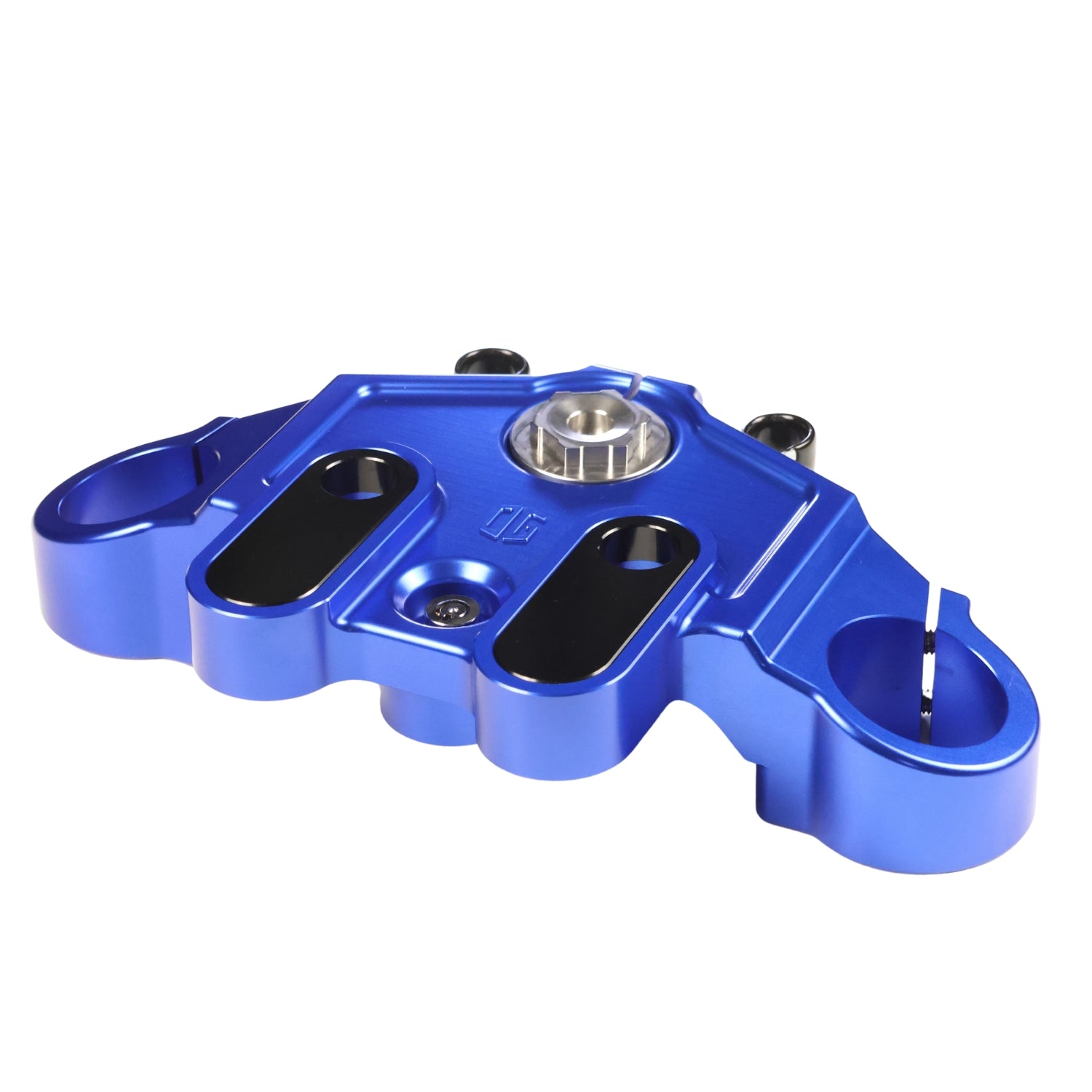

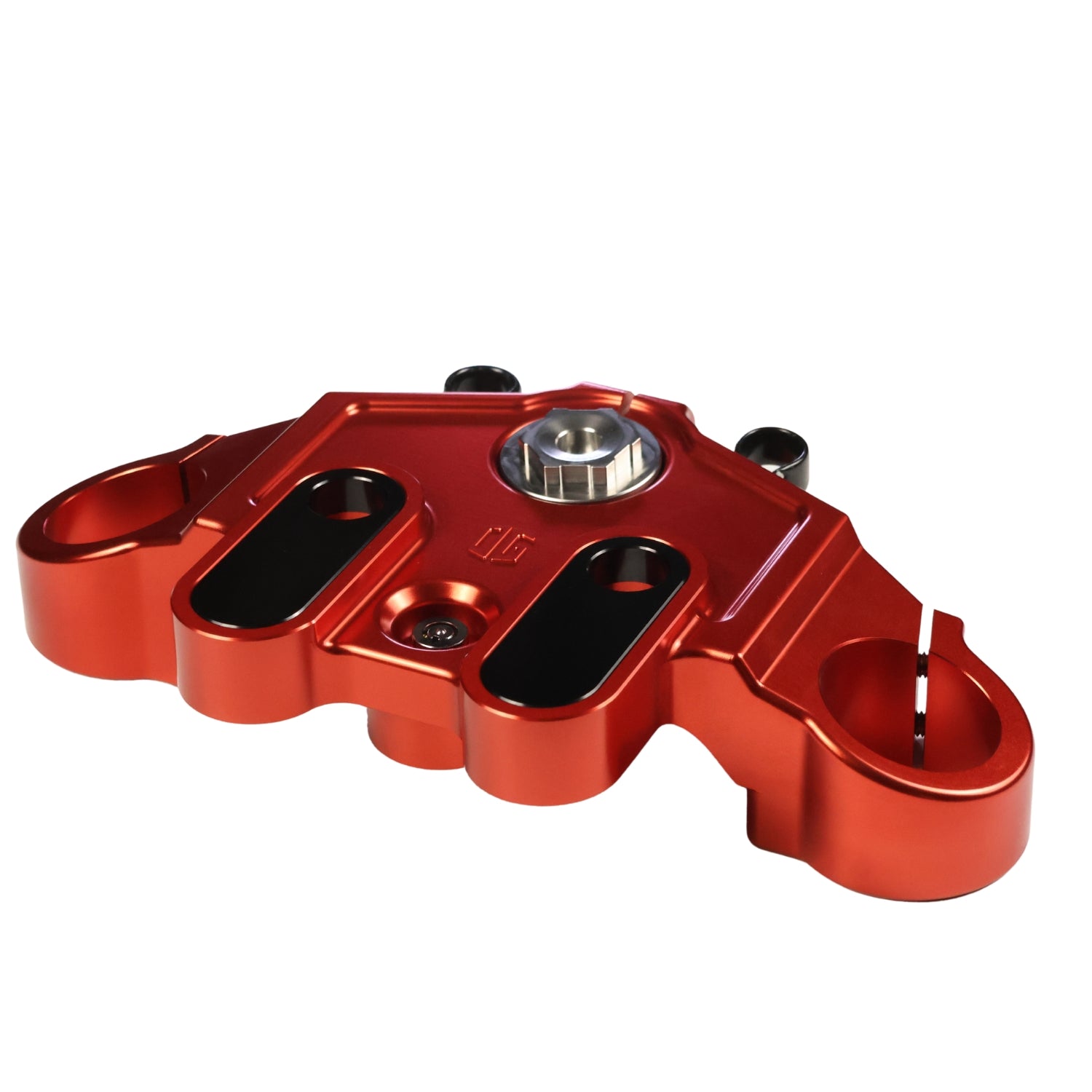

Our OG Drop 1" Top Triple Tree for Harley-Davidson Touring models will allow you to set your Risers exactly where you want them with three mounting location options; Stock, +1'' & +2'' pullback towards the rider (+1” Adapters are sold separately).
This tree will also allow you to lower your fork up to 1", which will raise your bike height and provide better ground clearance. This is a great alternative for those who don't want to commit to using +2 tubes but are looking for a more aggressive stance. Works well with 14-inch shocks.
Also features pocketed key lock & wire management clamps for that clean install and factory look. This premium Top Tree comes with a fully CNC machined 304 stainless steel stem nut and is available in all colors including chrome finishes.
*Please note: If your bike still has the OEM Ignition switch/Fork lock, you will need to have your bike flashed with the “keyless CVO feature” at your local shop prior to starting the installation.
**Risers bushing are required for this kit and sold separately.
Features
- 1" Drop feature

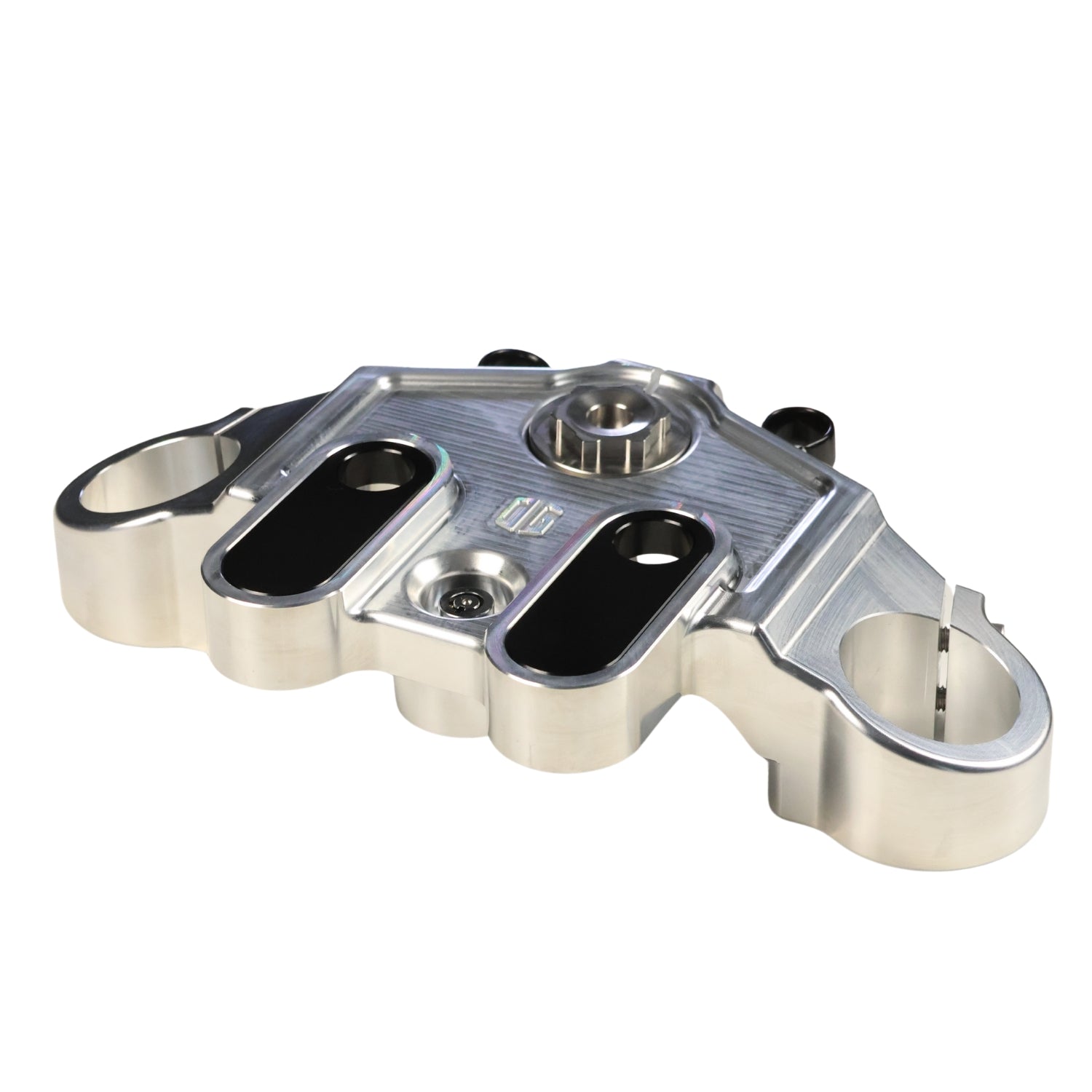

- Precision CNC machined 6061 T6 aluminum.
- Designed to match the OEM rake angle and triple tree offset ensuring a straightforward installation and maximizing performance.

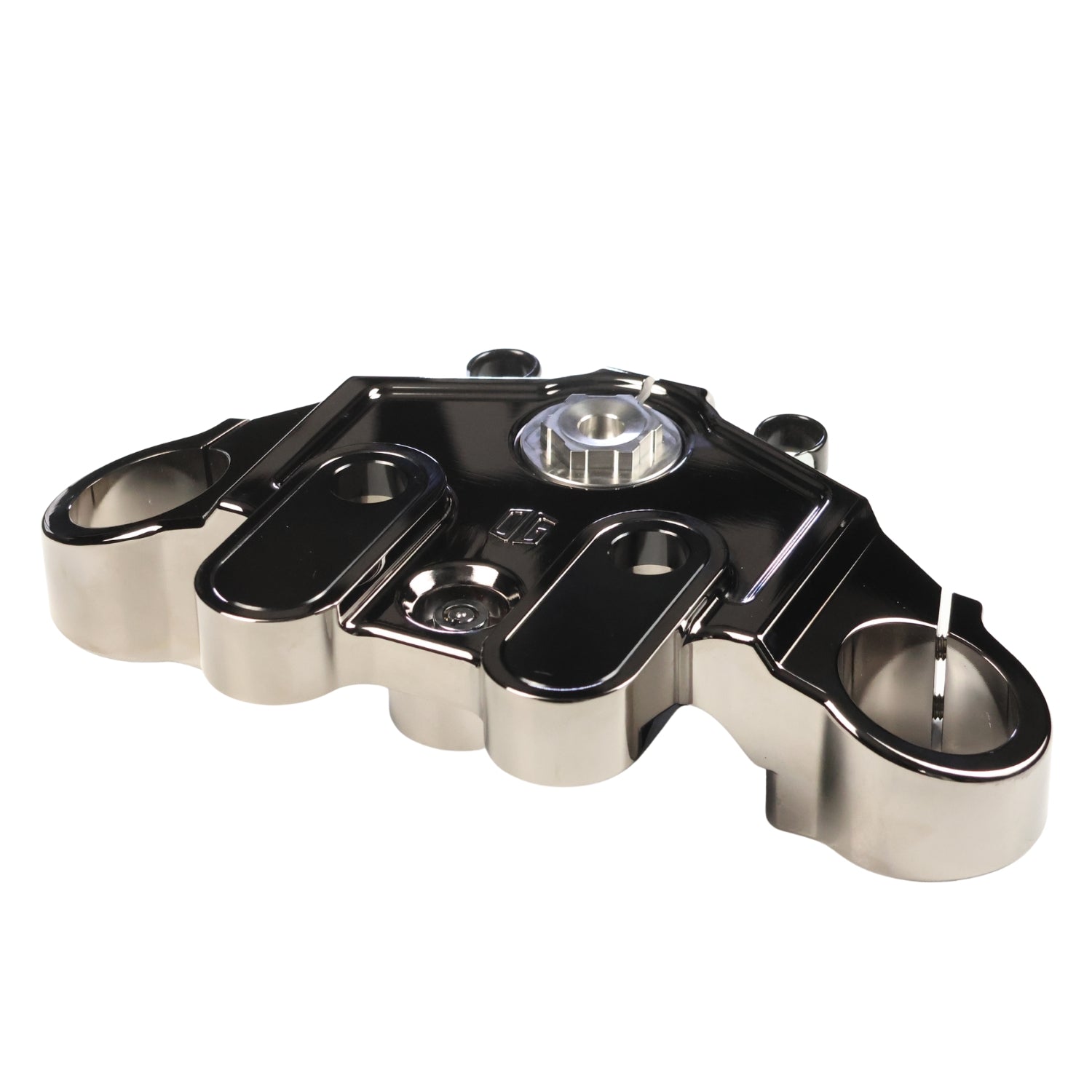

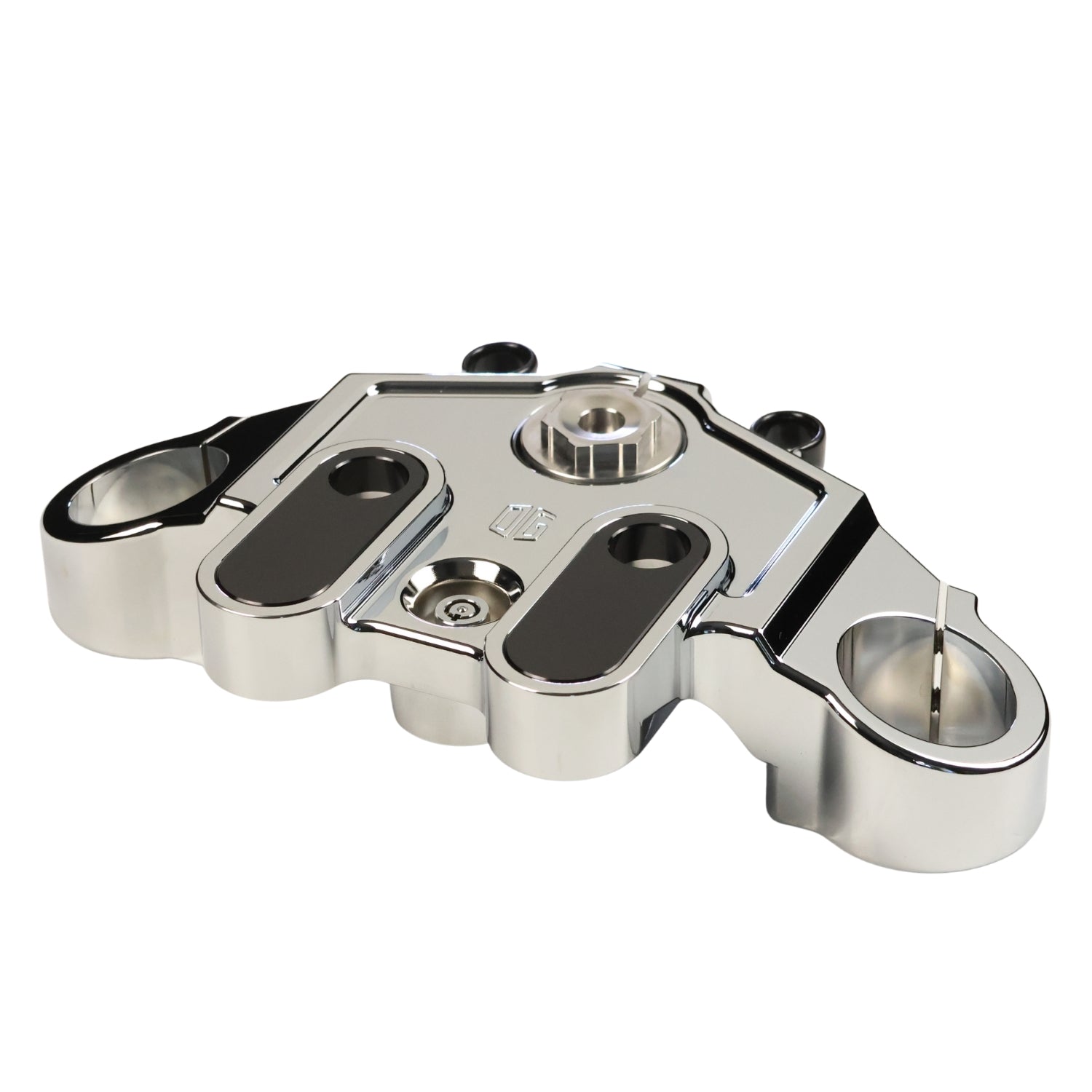

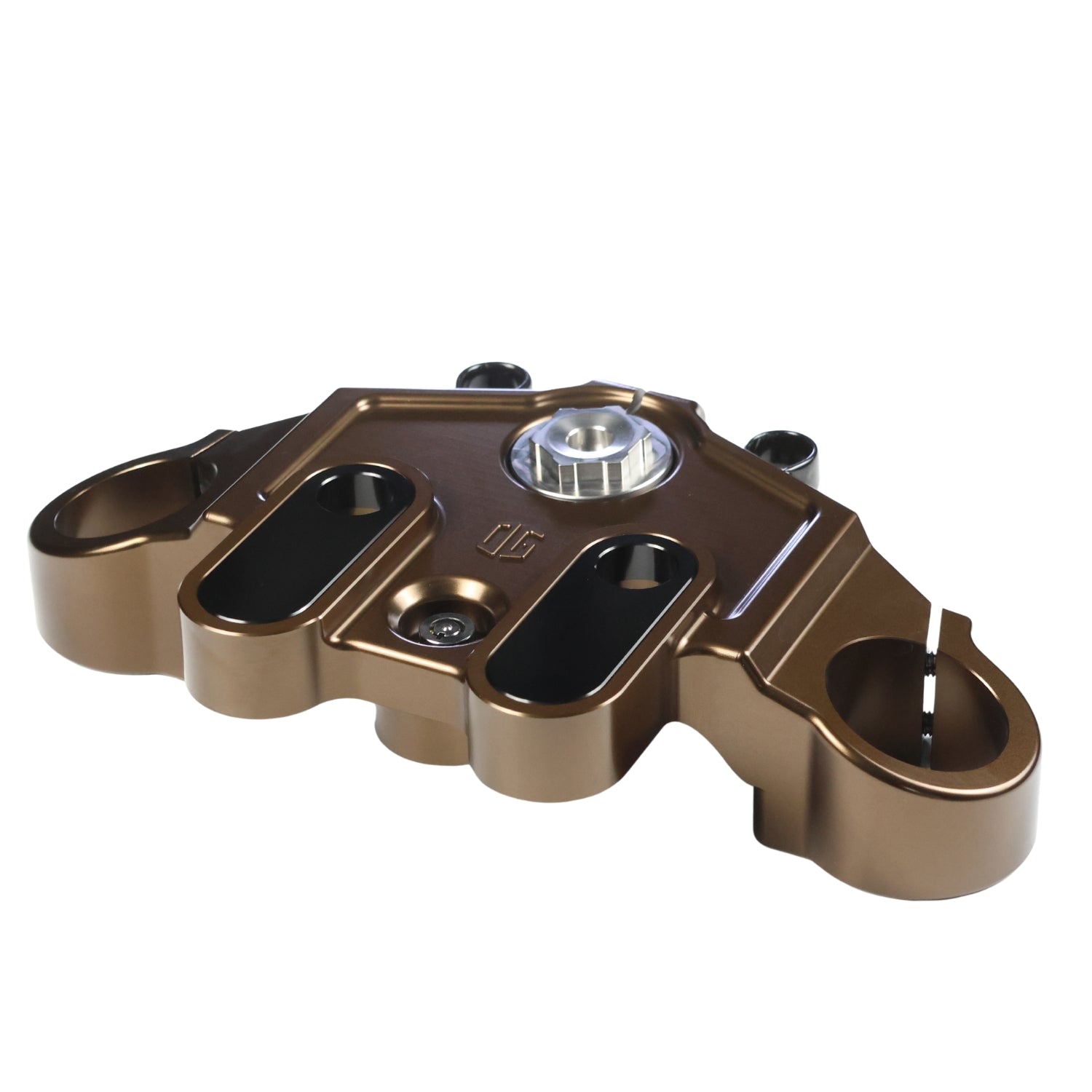

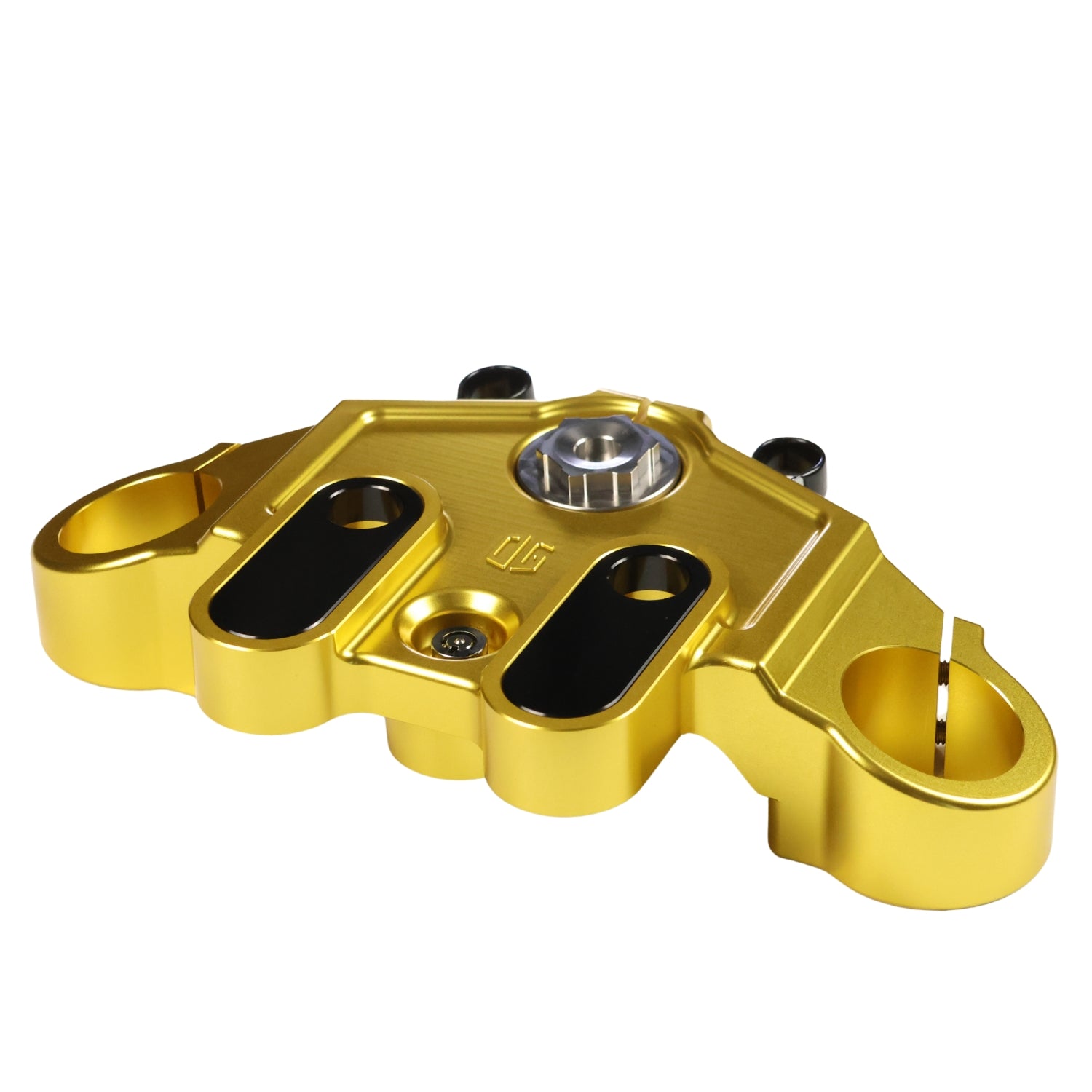

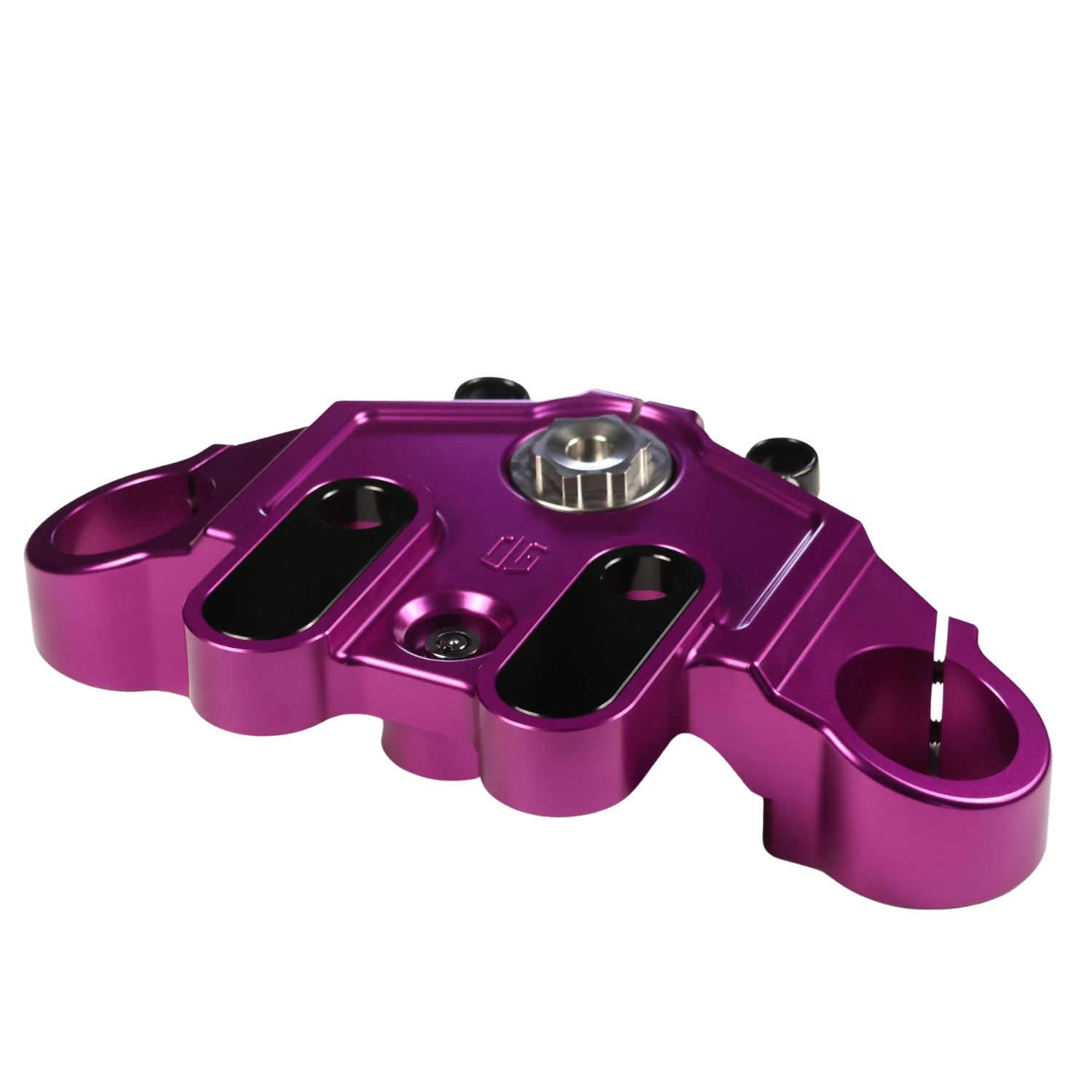

- Hard Anodized & Chrome finishes.
- Machined OG logo.
- Uses standard FL bushings.
- Stainless steel hardware included.
- Includes two Wire management clamps (one on both sides).
- Supplied with a lock and key to keep the fork lock feature.
- Innovative reversible Risers mounting Block allows three risers positions; stock, +1'' or +2” pullback towards the rider. +1” Adapters are sold separately.
Fitment

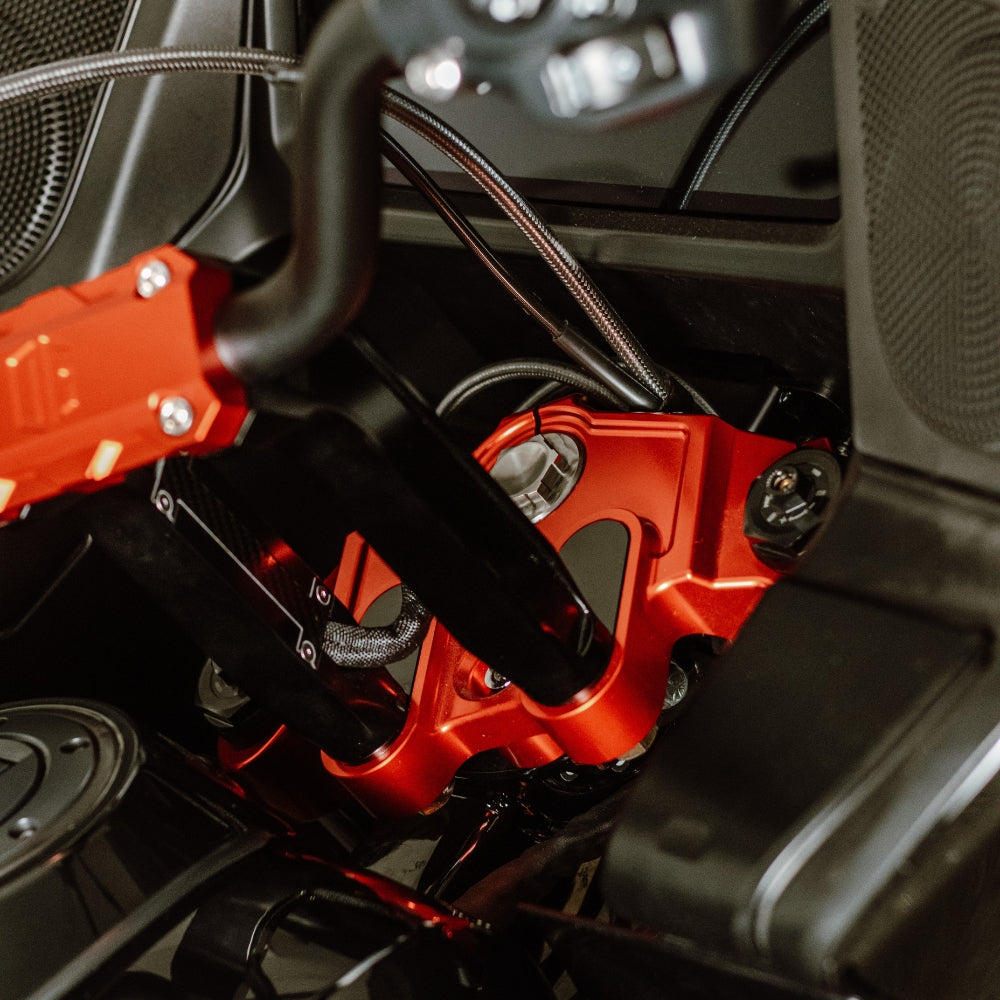

- Fits 2024 to present Road Glide models with 49mm front-end.
- Will not fit 2023+ CVO models equipped with an inverted front end.
- Does not fit Street Glide models due to fairing mount locations.
