Description

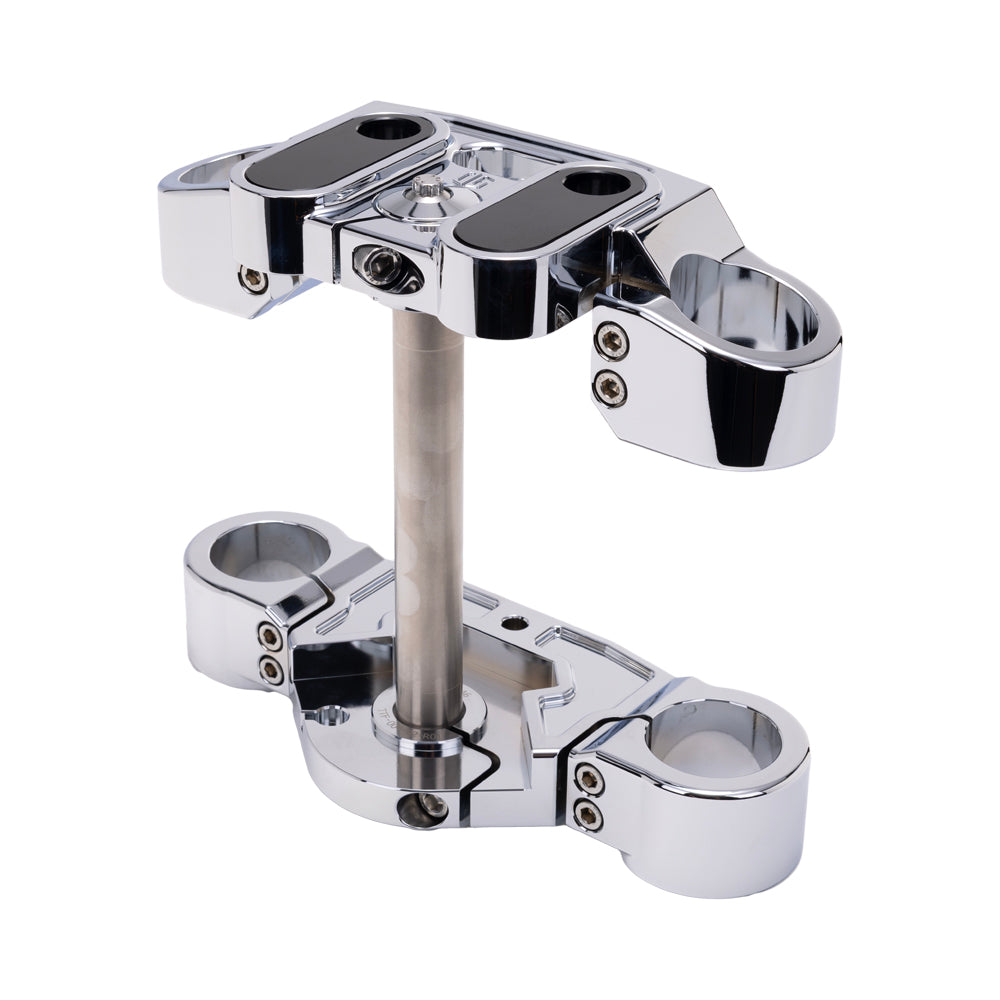

Our OG 2018-Up Softail 49mm Drop 1" Triple Trees kit is the ultimate performance Softail front-end upgrade. It is engineered to maximize performance & rigidity, featuring taller fork tube clamping sections and a thicker cross-section over the stock trees.
This Triple Trees kit will allow you to lower your fork up to 1", which will raise your bike height and provide better ground clearance. This is a great alternative for those looking for a more aggressive stance. Works well with longer 13.5" & 14" rear shocks.
It will allow you to set your Risers exactly where you want them with three mounting location options; Stock, +1'' & +2'' pullback towards the rider (+1” Adapters are sold separately).
Also features wire management clamps for that clean install and factory look. Available in all colors, including chrome finishes.
Features
- 1" Drop feature
-
Precision CNC-machined 6061 T6 aluminum trees
- Stem axle machined from 4140 Chromoly Steel for superior strength
- Includes our OG M8 Softail Billet Fork Stem Cap
- Designed to match the OEM rake angle and triple tree offset, ensuring a straightforward installation and maximizing performance
- Improved structural rigidity

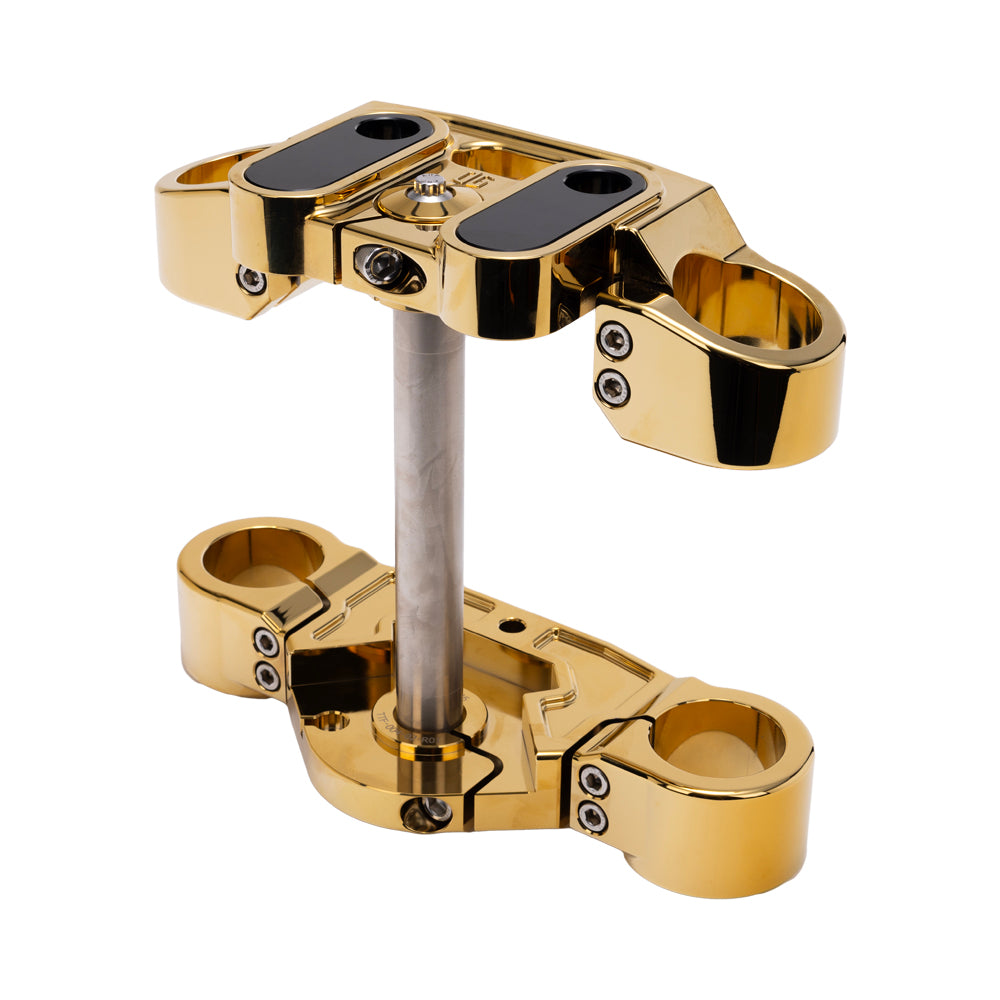

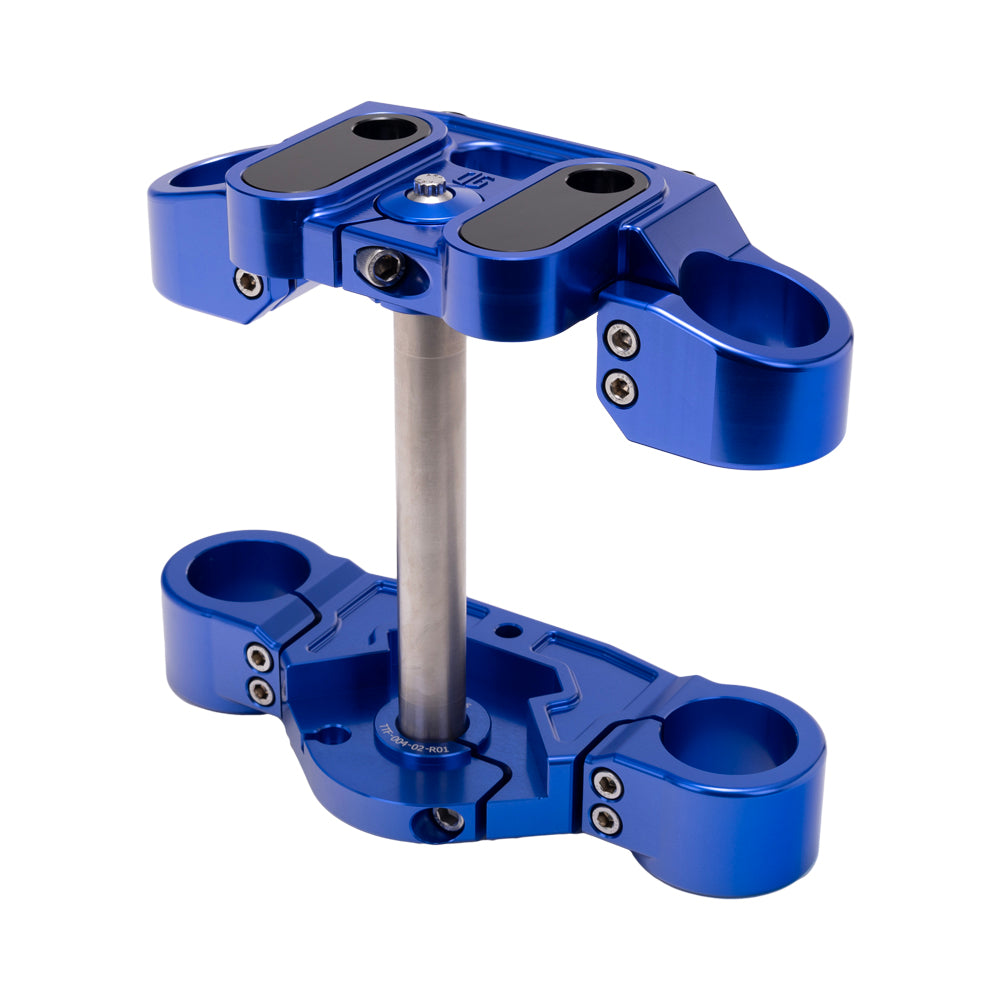

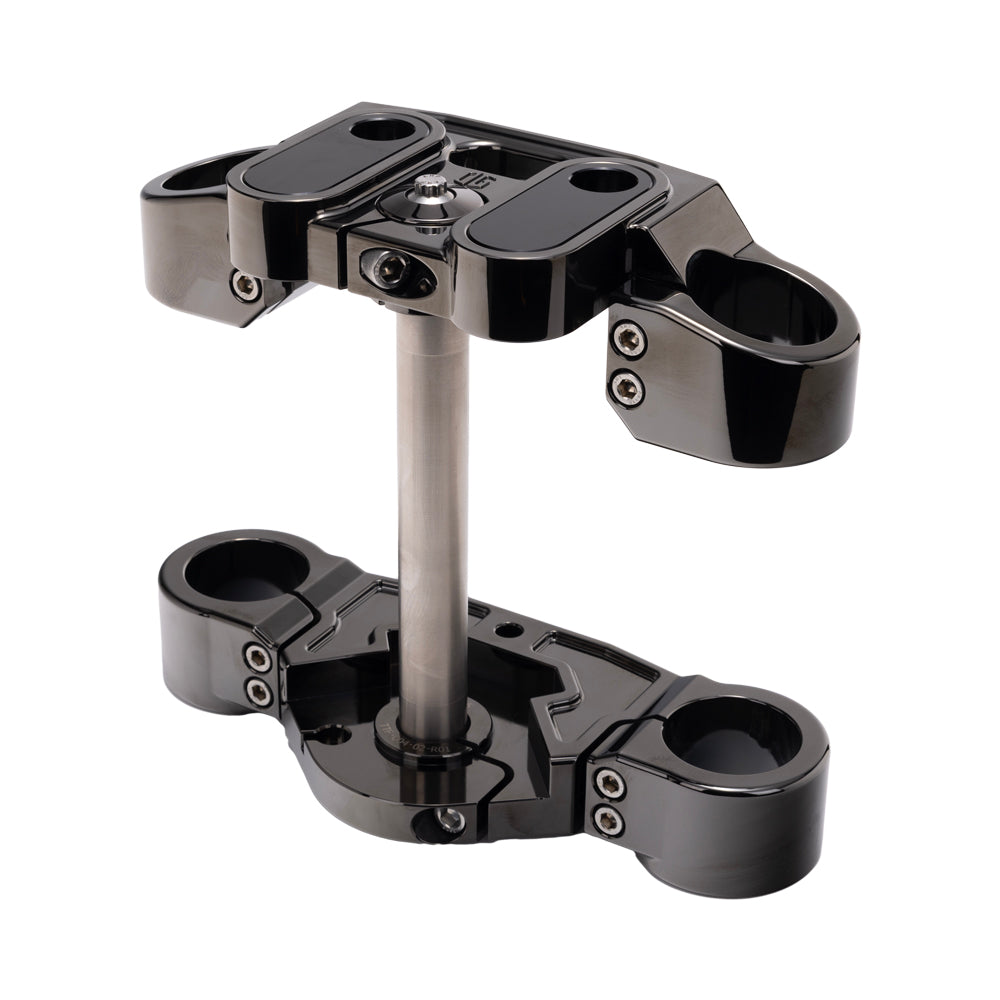

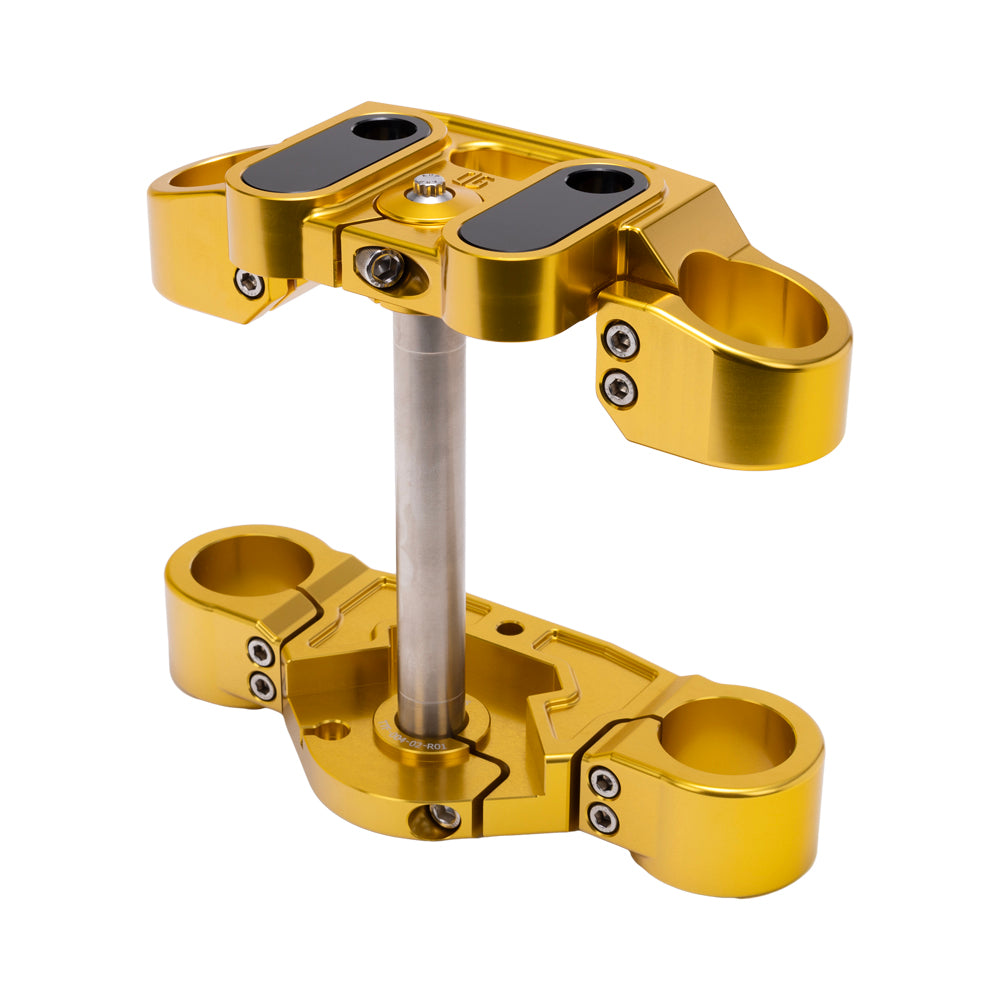

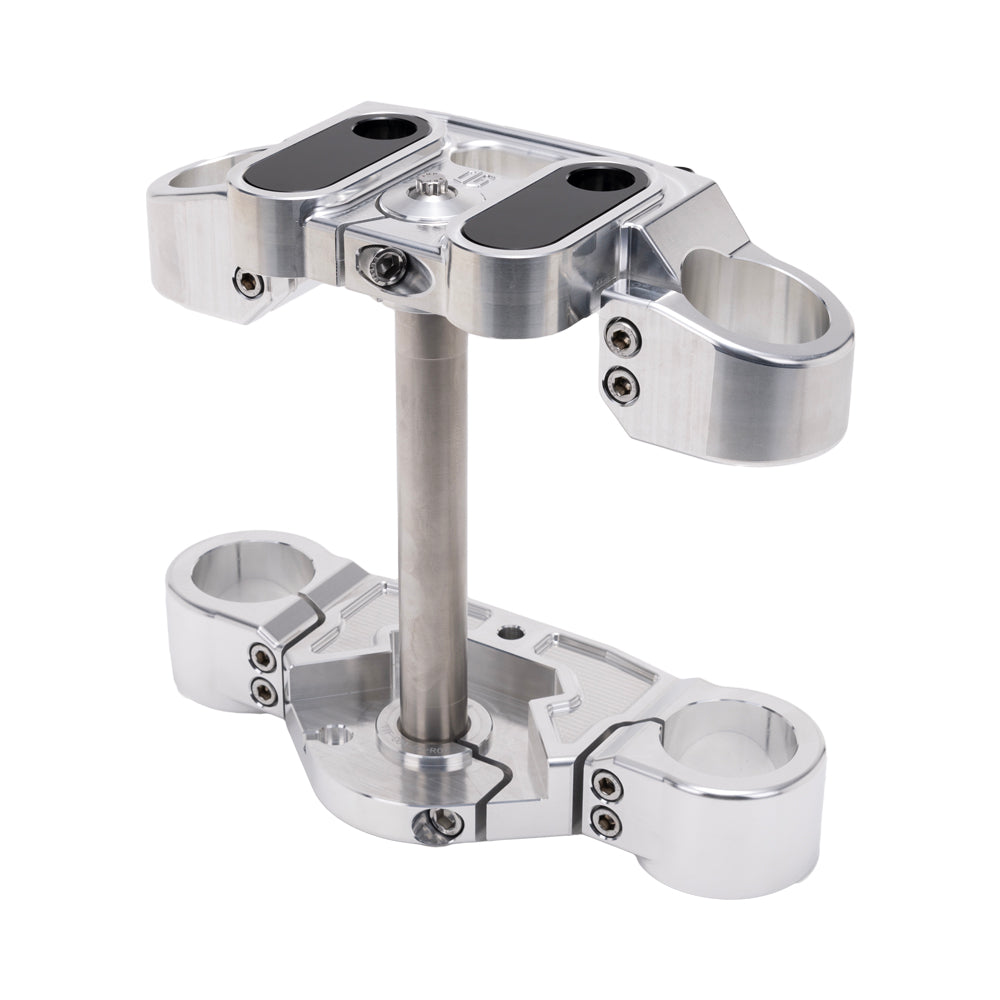

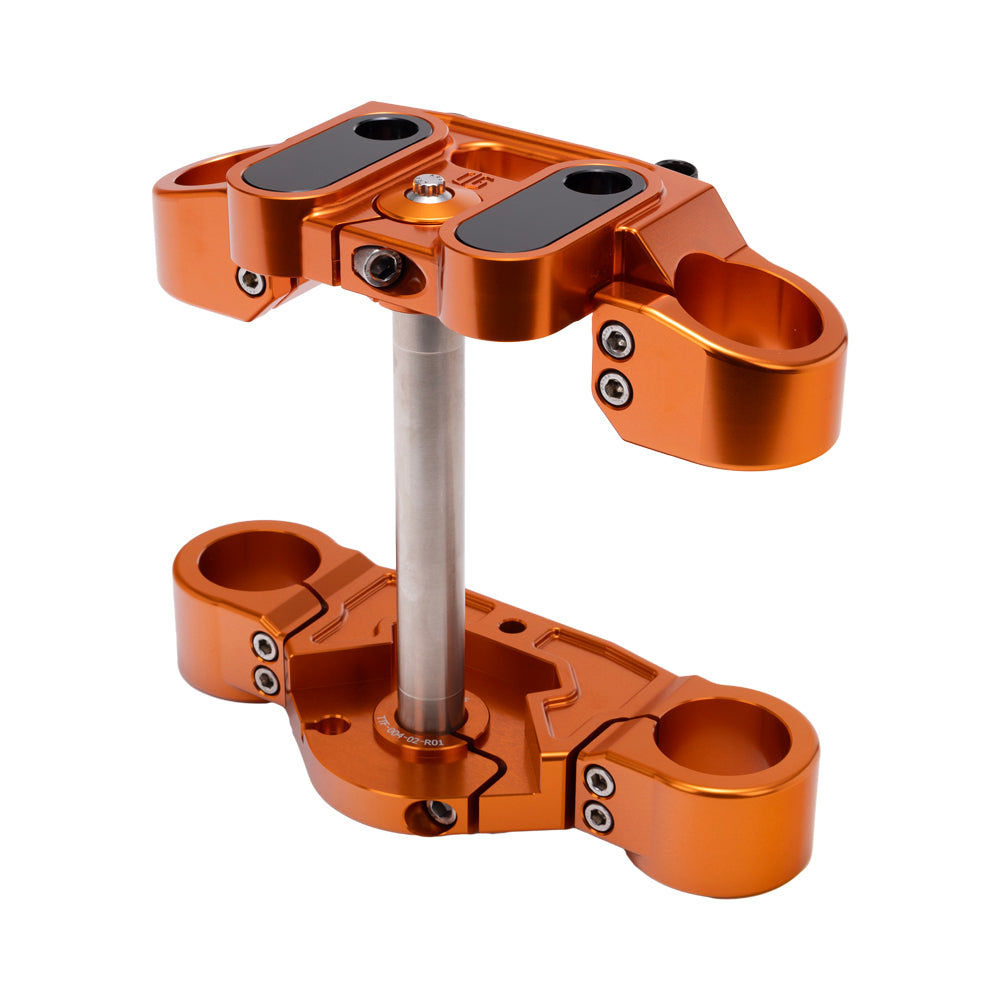

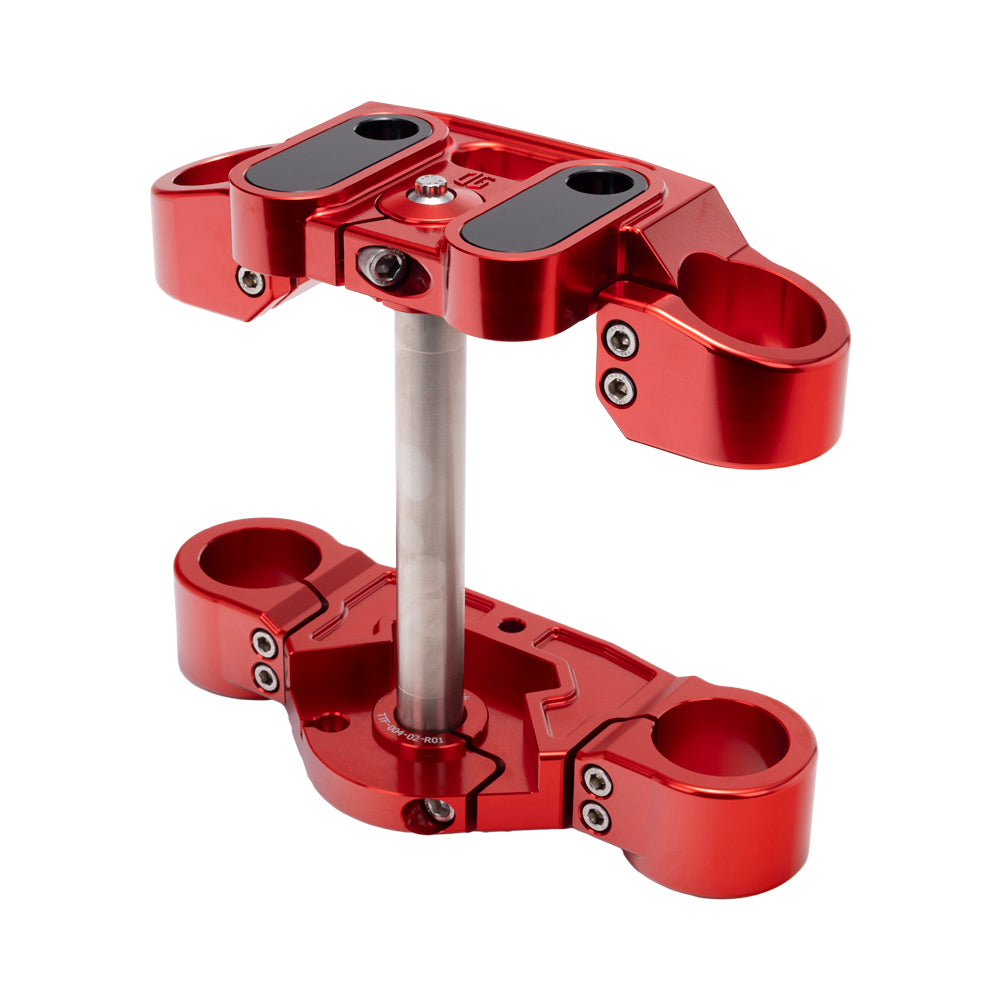

- Anodized finish & Chrome finishes
-
Machined OG logo
- Uses standard M8 Softail bushings
- Stainless steel hardware included
-
Includes two wire management clamps (one on both sides)
- Innovative reversible Risers mounting Block allows three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters are sold separately
Fitment
- Fits 2018 to present M8 Softail Street Bob FXBB, Low Rider FXLR & Standard FXST models with OEM 49mm front end

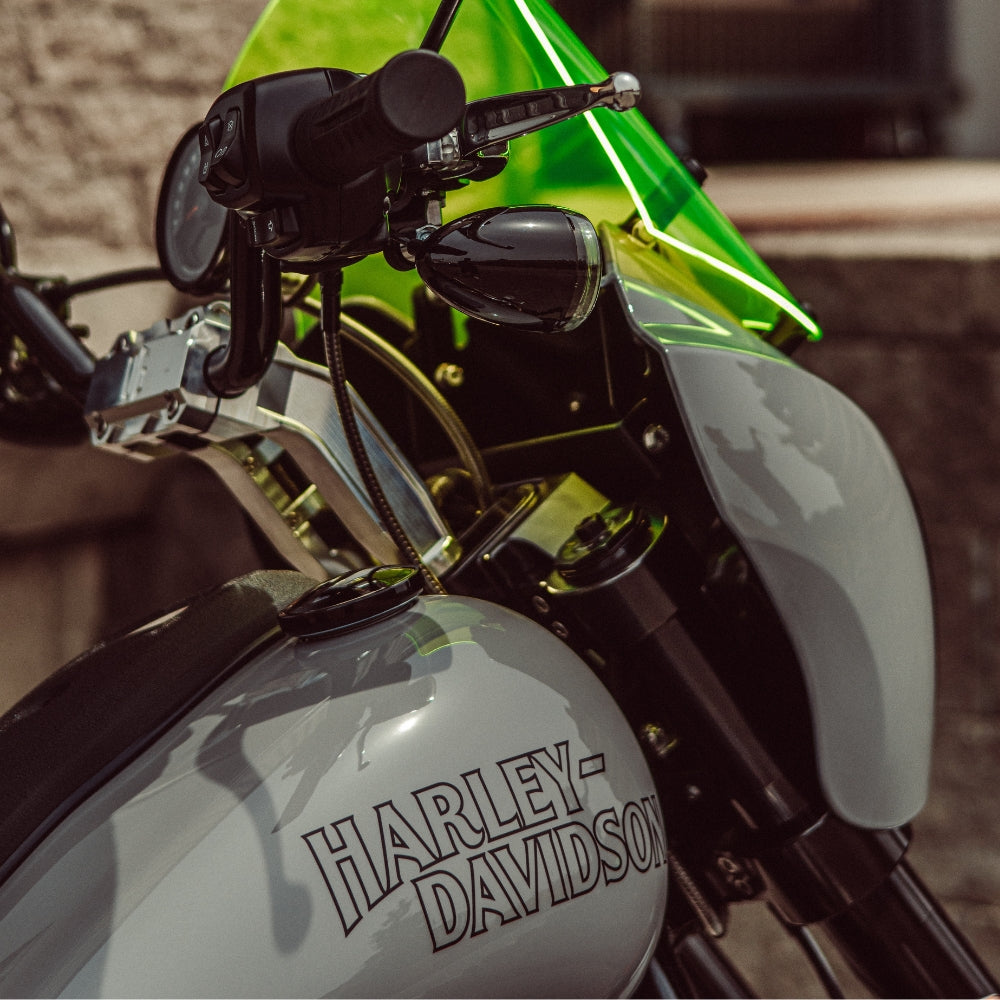

- Does not fit FXLRS / Low Rider ST models or any model equipped with inverted forks. For these specific applications, please check our OG 2020-Up Softail Lowrider S & ST Drop 1" Triple Trees kit
- Depending on the height of your risers, you may need cable or harness extensions when using the +2” pullback mounting location
*If your motorcycle is equipped with a T-Sport Fairing, you will need the T-Sport Fairing Mounting Kit for OG 2020-Up Softail Low Rider S & ST Top Triple Trees in order to run your T-Sport Fairing with the OG Top Triple Tree.
