Description

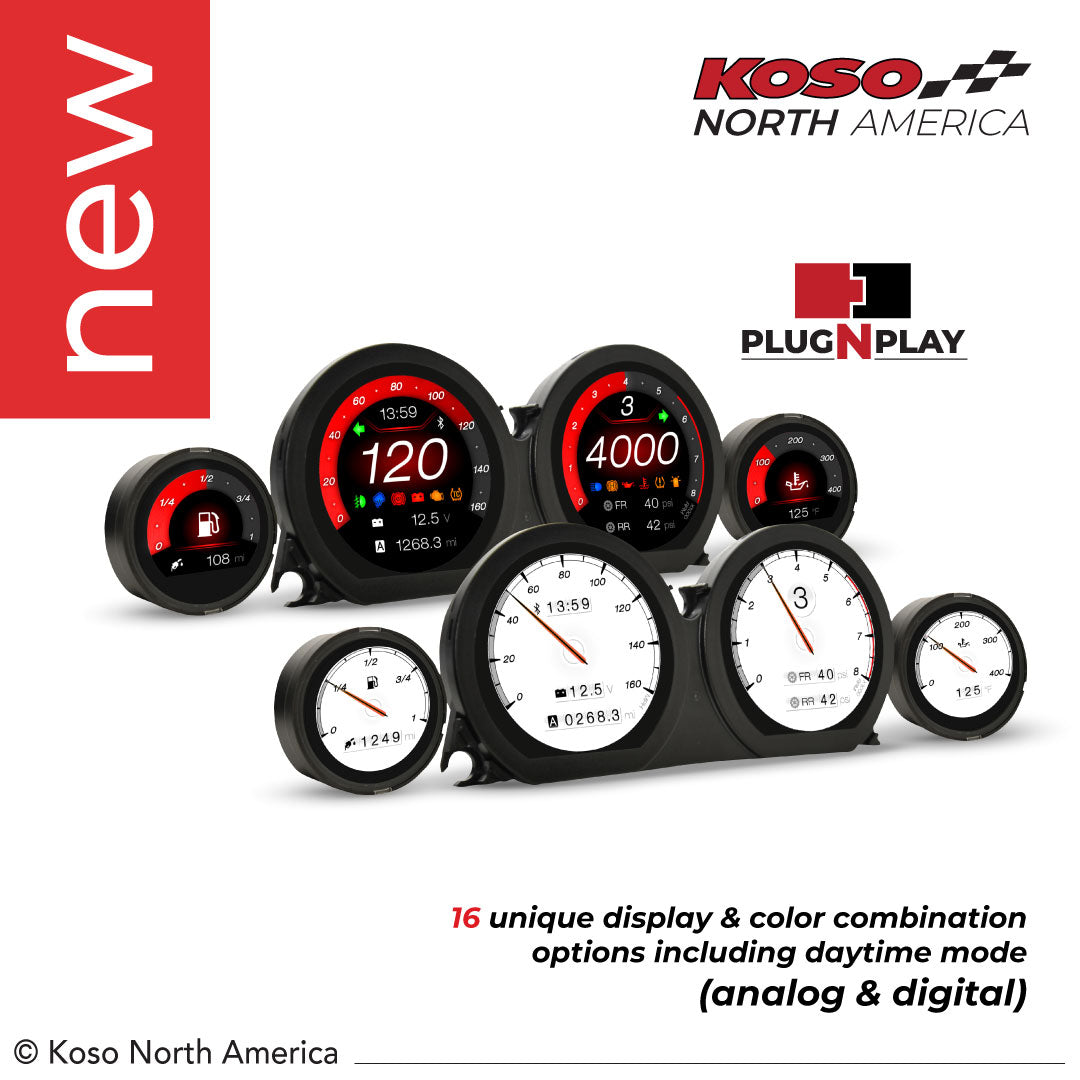

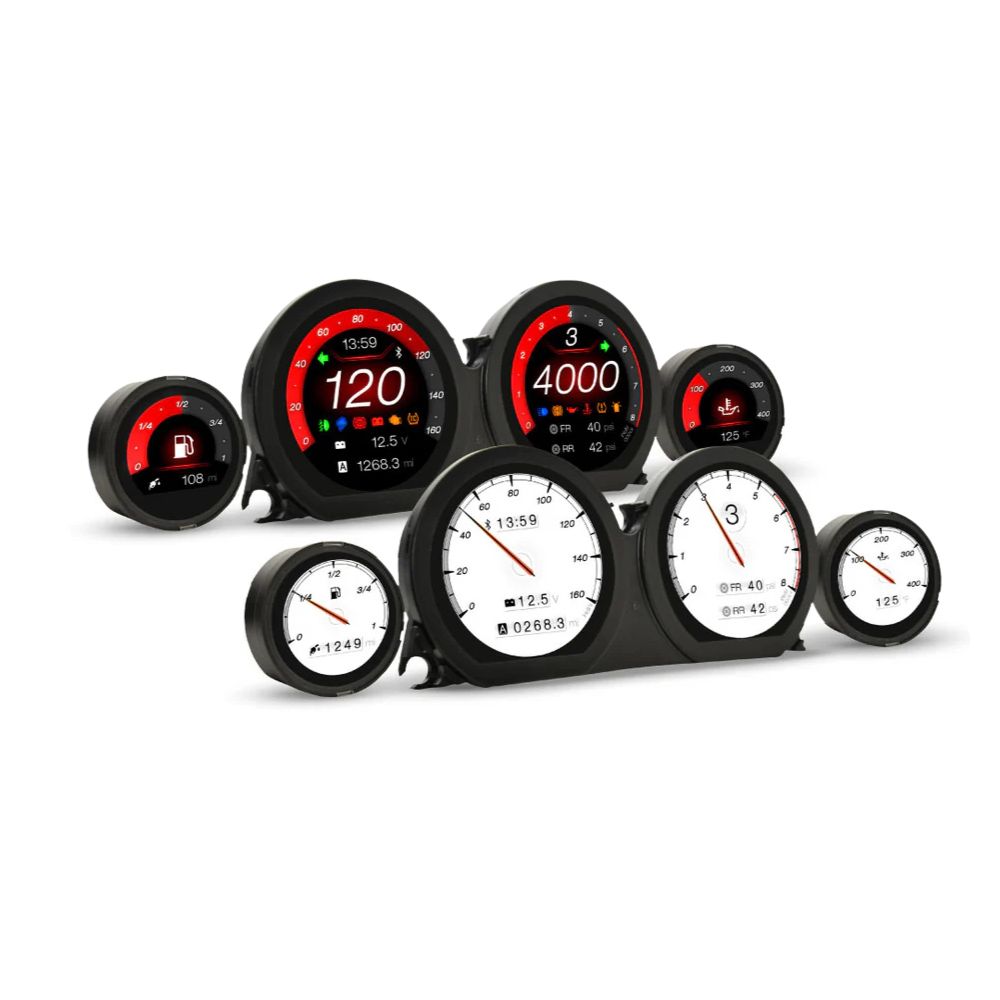

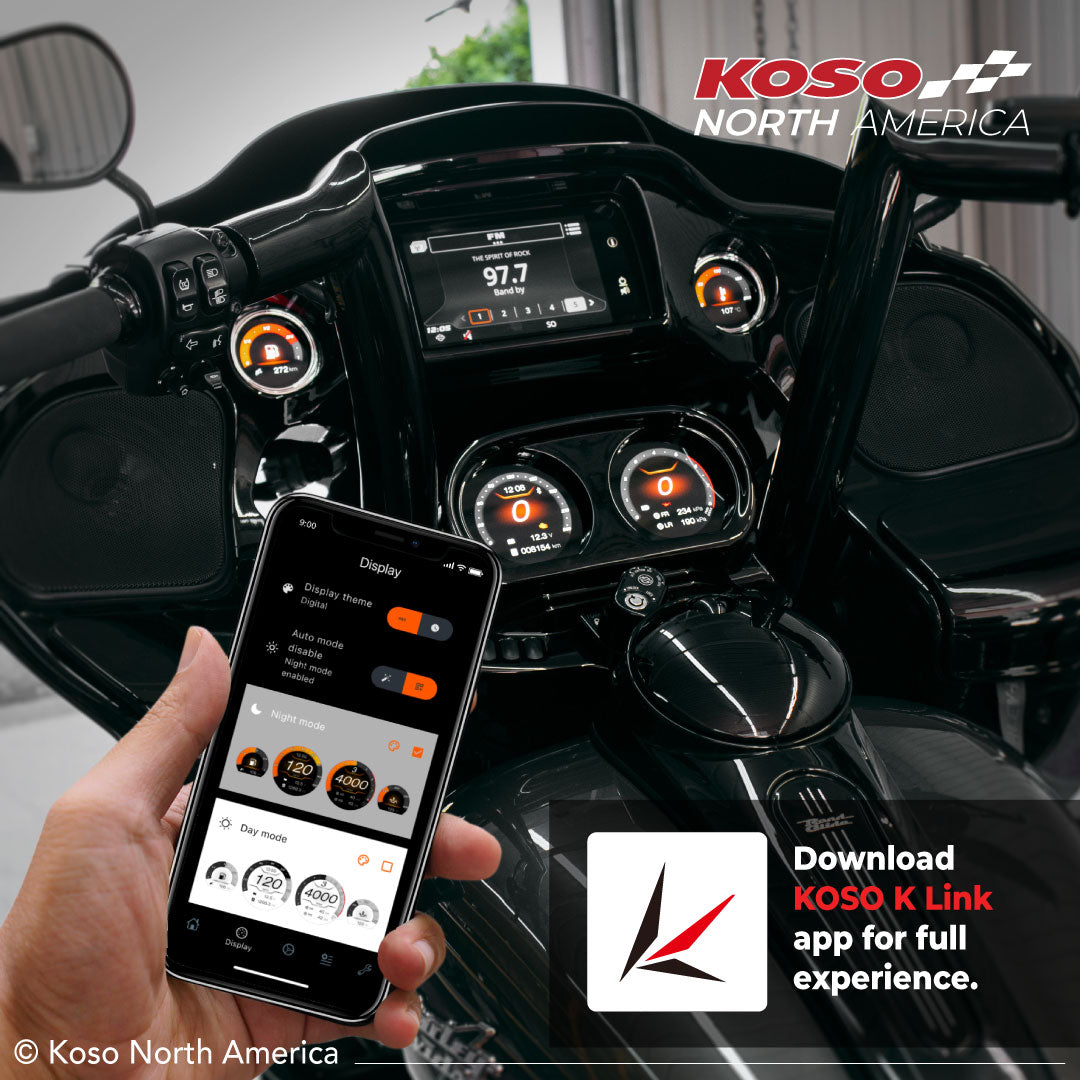

This plug-and-play TFT gauge set for Harley-Davidson Baggers 2014 to 2023 features a smartphone integration that gives you full control of your dashboard directly from your device. Connect your gauges to your phone with the KOSO K Link app and monitor real-time data of your bike: speed, fuel level, oil temperature, gear indicator, RPM, best performance, horsepower, tire pressure, and more. You can even see your vehicle’s location on the app and never have to search for it again in crowded places!

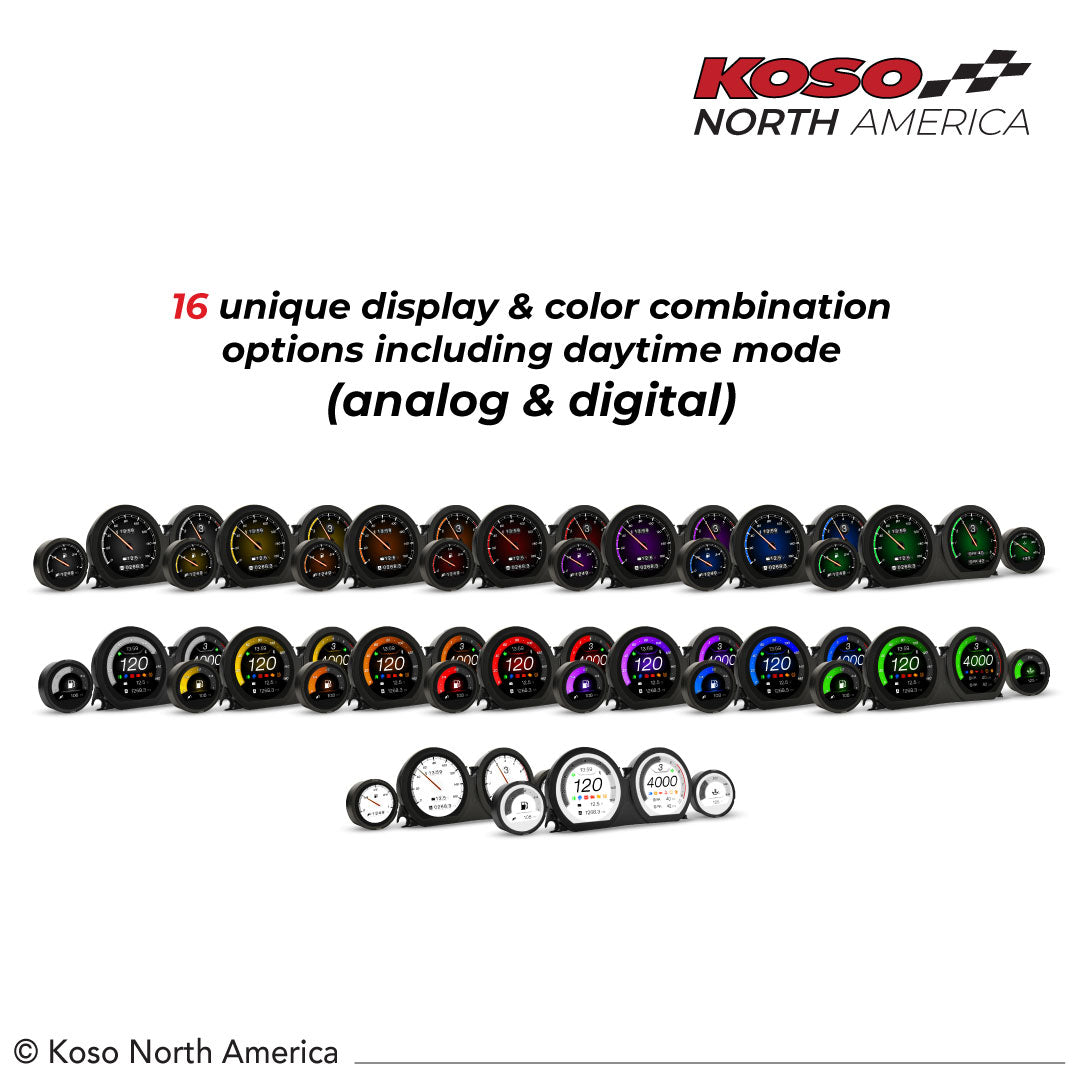

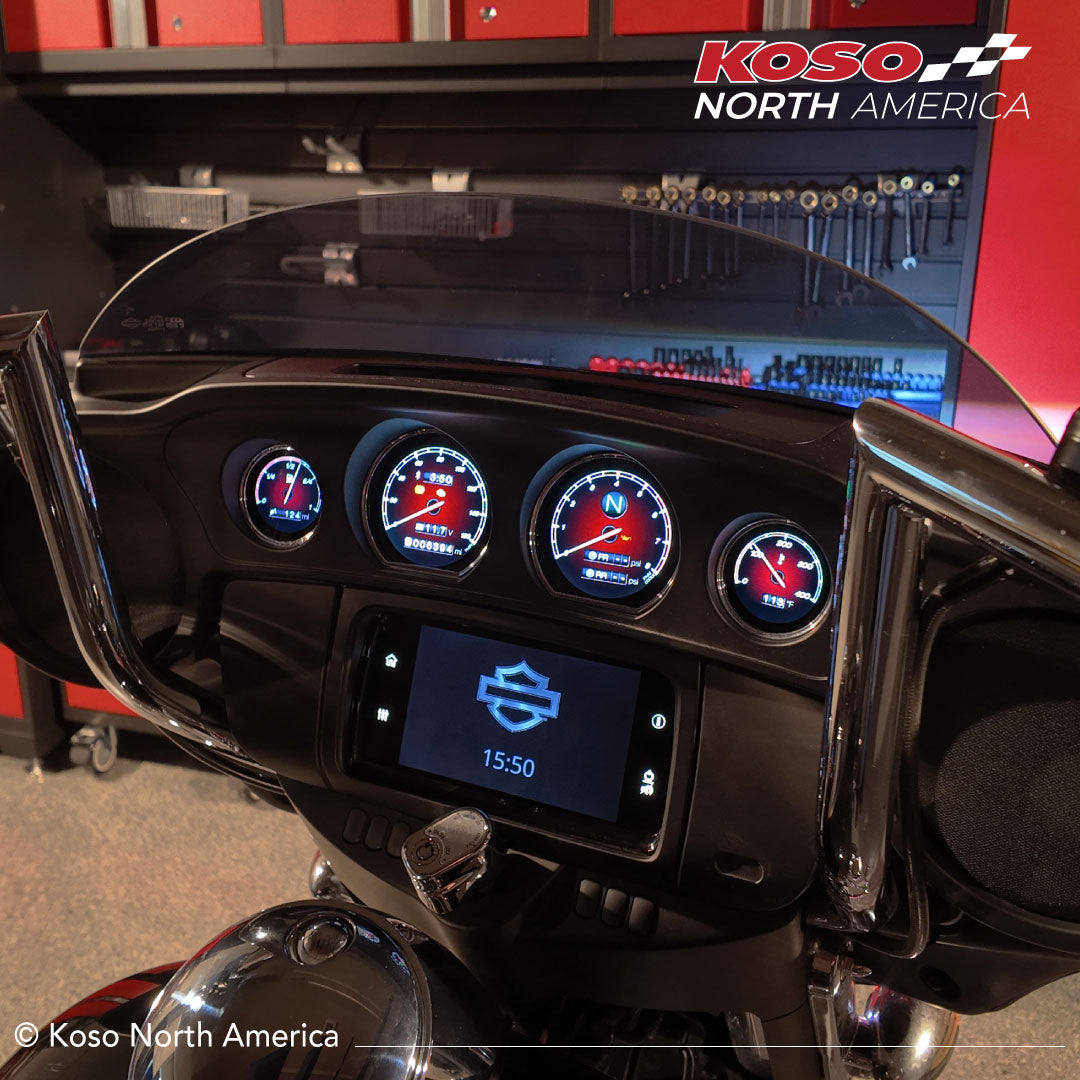

Match your motorcycle’s style by instantly changing between the analog and digital interface, as well as 7 different backlight colors, providing up to 14 unique display combinations. The K Link app also allows you to check your system health and maintenance with its diagnostics feature.
Features
- Tachometer: R 0~8,000 RPM | U 10 RPM
- RPM Shift‑light: R 1,000~8,000 RPM | U 100 RPM
- Maximum RPM: R 0~8,000 RPM | U 100 RPM
- Speedometer: R 0~199 MPH (0~299 km/h) | U 1 MPH or km/h
- Overspeed warning: R 20~199 MPH (30~299 km/h) | Warning lights on ≥ value
- Maximum speed record: R 0~199 MPH (0~299 km/h)
- Odometer: R 0~999,999 miles (km) | U 1 mile (km)
- Tripmeter A/B: R 0~9,999.9 miles (km) | U 0.1 mile (km)
- Mileage maintenance: R Off / 300~10,000 miles (500~16,000 km) ~ -999 miles | U 100 miles (km)
- Engine temperature: R -40~572 °F (-40~300 °C)
- Fuel warning setting: 1-HD Standard: Flashing LCD >211 Ω, Off LCD <187 Ω; 2-HD
- Customize: Flashing LCD <20%, Off LCD >30%
- Fuel tank volume: OFF / 1~9.9 US gallons
- Average fuel consumption: OFF / MPG (US) / MPG (UK) / L/100 km / km/L
- Remaining mileage: LO RNG displayed when <10 miles (16 km) | U 1 mile (km)
- Oil temperature meter: R 32~248 °F (0~400 °C) | U 1 °F or °C
- Max. oil temperature record: R -40~572 °F (-40~300 °C)
- Clock: R 12 H or 24 H format
- Volt meter: R DC 8~18 V
- Digits brightness: R 1/5 (darkest) ~ 5/5 (brightest)
- Horsepower: R 8.8~200 HP
- G-Force: R 0~2 G | U 0.1 G
- Tire pressure: R —, Hi, 0~73 psi, 0~506 kPa, 0.0~5.0 bar | U 1 psi, 1 kPa, 0.1 bar
- DTC diagnostic: R six-digit error
- Altitude: R 0~10,000 m (0~32,800 ft)
- Indicator lights: Turn signal / Temp warning / Oil pressure / Photometric sensing /
- Warning light / Check engine / High Beam / Fog light / Volt / Traction control /Cruise / ABS / Rain mode / Vehicle hold control / Fuel level / Low tire pressure /Security light
- Gear indicator: OFF, N, P, R, 1, 2, 3, 4, 5, 6
- Effective temperature range: -4~140 °F (-20~60 °C)
- Effective voltage: DC 12 V
- Backlight color: White, yellow, orange, red, purple, blue, green & daymode

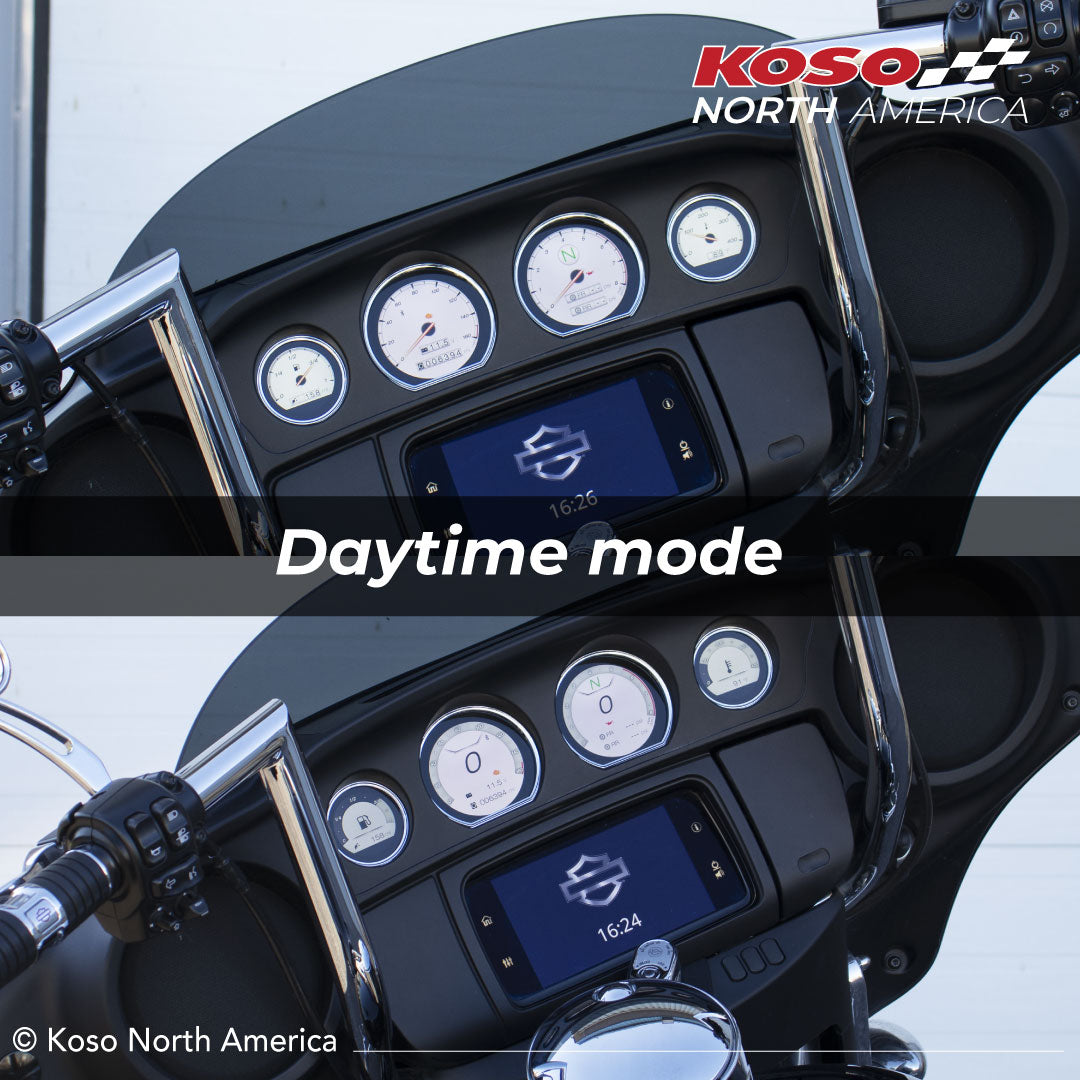

- Background display: Auto (switches Day/Night based on light) / Day mode / Night mode
- Mobile connection status: R Steady (connected), OFF (not connected)
-
Background display units: Speed unit: km/h or MPH | Temperature: °C or °F | Fuel consumption: L/100 km, km/L, MPG(US), MPG(UK) | Tire pressure: PSI, kPa, bar
- Compass: R N, NE, E, SE, S, SW, W, NW
Fitment

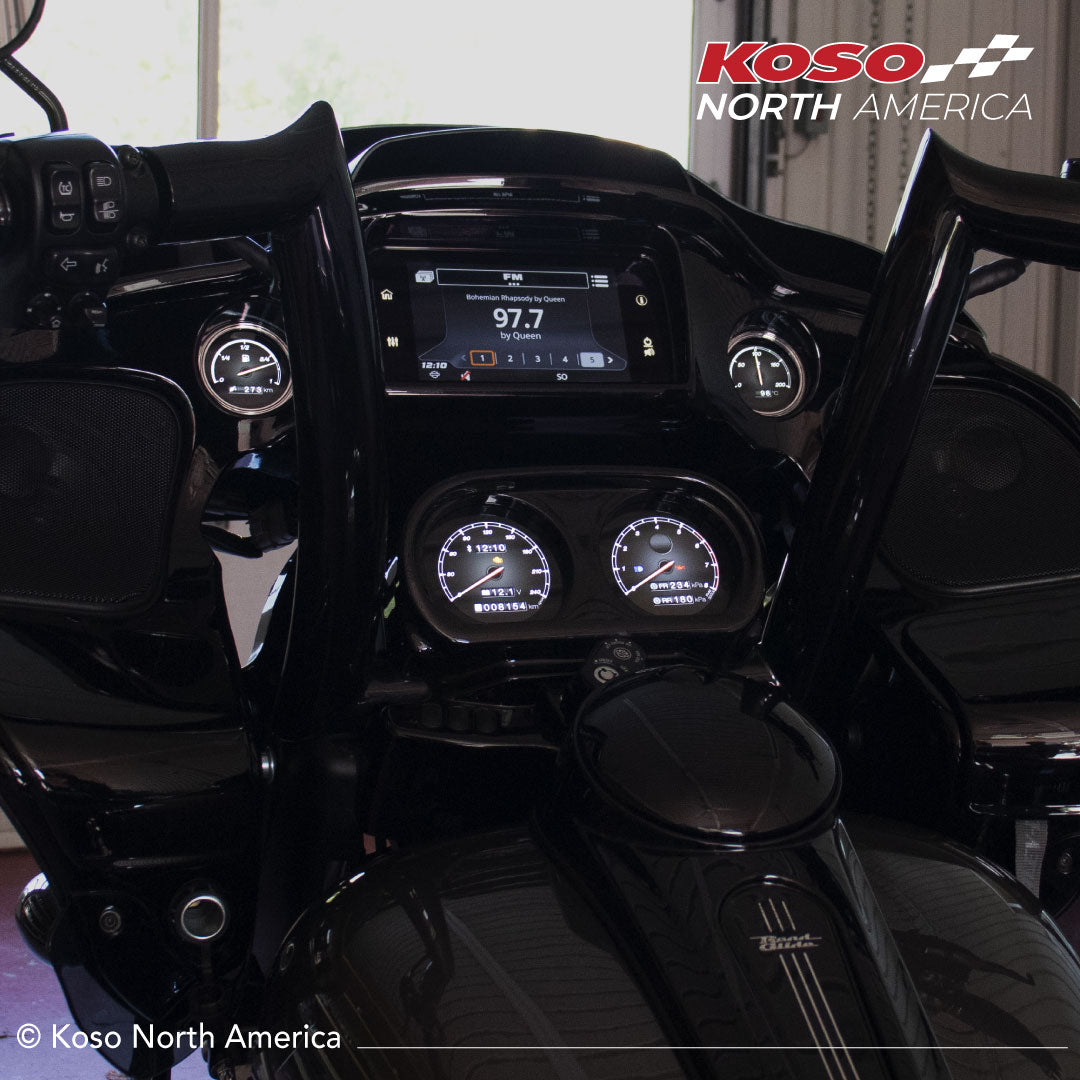

- Fits most 2014-2023 Street Glide, Road Glide, Electra Glide & Ultra Limited models
Click here for detailed fitment chart
Installation
