Description

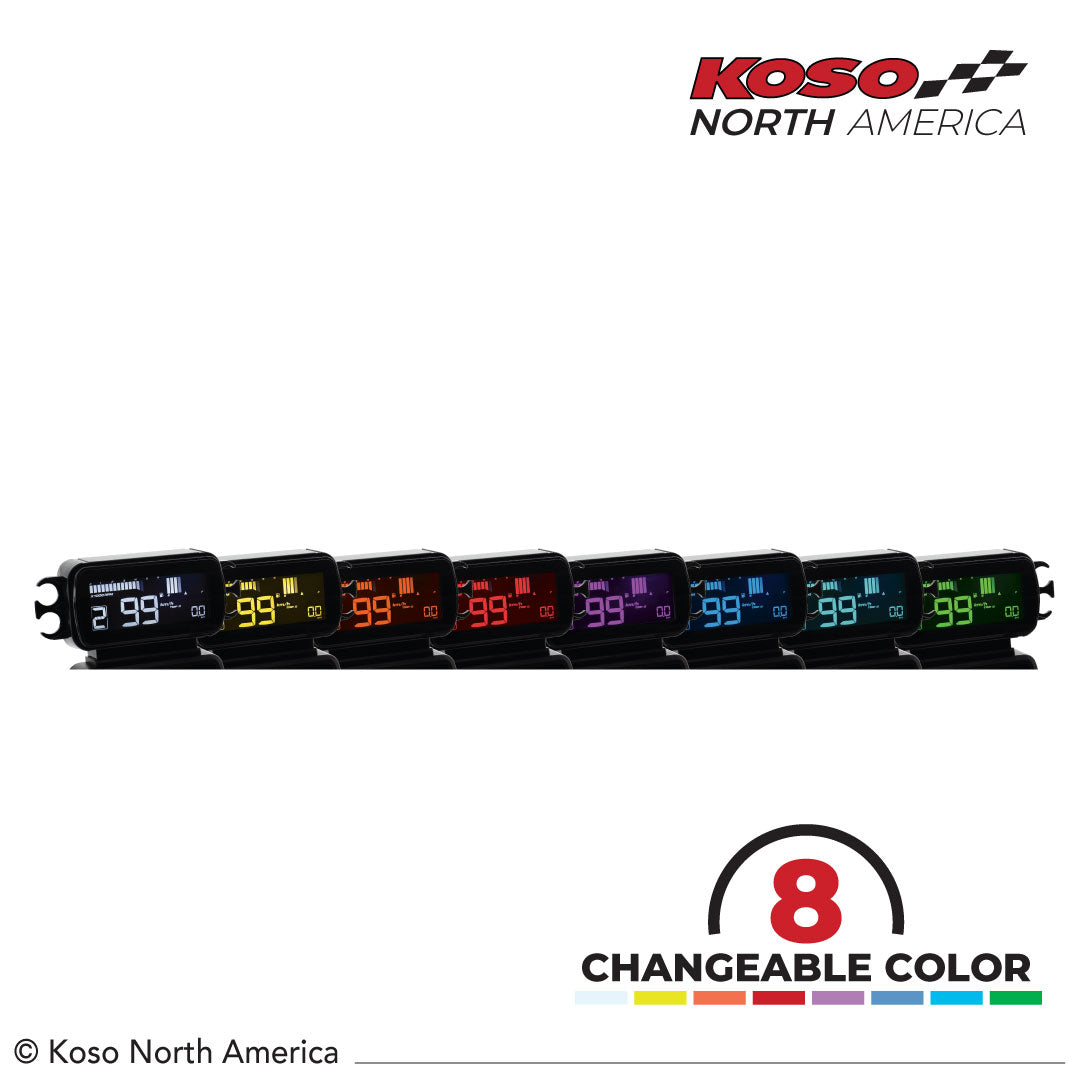

Equipped with an 8-color changeable LCD display, the new plug-and-play D2 meter for Baggers features a tach and speedo combo with a programmable shift light and includes a gear indicator for easily seeing what gear you’re in.
This gauge also features vital readings such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor your bike’s vital signs. This gauge will fit directly into the stock harness and work directly with your bike’s CANBUS system.
Compatible with all OG Risers when used with our Digital Gauge Top Clamp.
*For Road Glide Models, fuel and voltage information will be visible on the Koso D2 Meter; the OEM Fuel meter and Voltage meter will no longer display information. Replacement Koso Fuel and Voltage Gauges are included with the BA080050 kit.
Features
- Speedometer: 0–199 km/h (0–124 mph) switchable, 1 km/mile unit, <0.5s display interval
- Odometer (Internal & External): 000,000–999,999 km/mile, 0.1 km/mile unit, resets after exceeding
- Trip Meter (A & B): 0,000.0–9,999.9 km/mile, 0.1 km/mile unit, resets after exceeding
- Tire Circumference: 50–210%, 1% unit
- Tachometer: 0–10,000 RPM
- Backlight Color: White, Red, Orange, Yellow, Blue, Light Blue, Purple, Green
- Mileage Maintenance: Off, 500–16,000 km (300–10,000 miles), 100 km/miles unit
- Indicator Lights: Turn Signal, Water Temp, Oil Pressure, Photometric Sensing, Warning, Check Engine, High Beam, Fog Light, Volt, Traction Control, Cruise, ABS, Rain Mode, Vehicle Hold, Fuel Level, Low Tire Pressure, Security
- Shift Light Warning: 2,000–10,000 RPM, blinks red & white when exceeding, 100 RPM unit
- Engine Temperature: -38–572 °F (-39–300 °C)
- Clock: 12/24 hour format
- Voltmeter: 8–18 V
- Backlight Brightness: 1/5 (darkest) – 5/5 (brightest)
- Meter Weight: ~70 g
- Tire Pressure (TPMS): —, HI, 0–73 PSI / 0–506 kPa / 0.0–5.0 bar, 1 PSI / 1 kPa / 0.1 bar unit
- Fuel Meter: 10 levels
- Operating Voltage: DC 12 V
- Operating Temperature: -20–85 °C
- Storage Temperature: -30–90 °C
- Specifications: JIS D 0203 (S2)
- Meter Size: 88.2 × 67.0 × 35.2 mm
Fitment
- Fits most 2014–2023 Touring models, except Road King.
- Compatible with Street Glide, Road Glide, Electra Glide, and Ultra Limited models
- Koso Rubber Gasket for D2 gauges is required to install this product with any risers
- Koso 12" Extension Wire for D2 gauges is required when installing this product with any of our OG Risers
*For Road Glide Models, fuel and voltage information will be visible on the Koso D2 Meter; the OEM Fuel meter and Voltage meter will no longer display information. Replacement Koso Fuel and Voltage Gauges are included with the BA080050 kit.
Click here for the detailed fitment chart
Installation
